Automotive Grade
*Automotive-grade resonator
*Package: 3.2x2.5mm
*SMD metal package
*Wide frequency range, high stability, high performance
*Automotive-grade reliability
*Operating temperature: -40~+125℃
*AEC-Q200 & IATF16949 certified
| Item / Type | YSX321SC |
| Standard Frequency | 8.0 to 66 MHz |

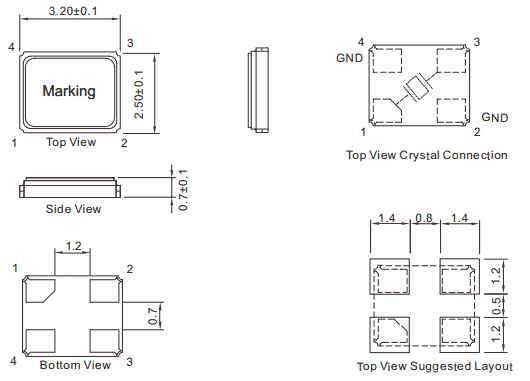

| Dimensions | 3.20 x 2.50 x 0.70 mm |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 8pF, 12pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 30 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 50 ppm, or specify |
| Operating Temperature | - 40 ~ + 125℃, or specify |
| Storage Temperature | - 55 ~ + 125℃, or specify |
| Shunt Capacitance | 3 pF Max. |
| Level of Drive | 1~200μWMax. (100uW typical) |
| Frequency Aging (at 25 ℃) | ± 2 ppm / year Max. |
| Quartz Crystal Resonator |
Series | Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Stability (ppm) |
Pin | Material | Operating Temp |
- | Remark |
| X | C | 3.2 x 2.5 | 8M | S | B | 4 | S | A | - | 17 |
| Fundamental | |
| 8.0~9.9MHz | 800 Ω Max. |
| 10.0 ~10.9MHz | 250 Ω Max |
| 11.0 ~11.9MHz | 150 Ω Max |
| 12.0 ~12.9 MHz | 100 Ω Max |
| 13.0~15.9 MHz | 70 Ω Max. |
| 21.0 ~29.9 MHz | 60 Ω Max |
| 30.0 ~66.0 MHz | 50 Ω Max. |
Frequency : 8.0MHz-66MHz
Dimension : 3.2 x 2.5 x 0.7 mm
Load Capacitance : 8pF, 12pF, or specify
Operating Temp :
Frequency Tolerance : ±10ppm ±30ppm
