High Precision TCXO
A temperature compensated crystal oscillator is a high-precision crystal oscillator that maintains the output frequency of the crystal oscillator within a certain accuracy range through compensation within a certain temperature range. It has the characteristics of low temperature drift, fast startup, and high stability.
| Picture |
Model |
Voltage
|
Frequency
|
Dimension
|
Operating Temp
|
Frequency Tolerance
|
Output
|
Datasheet |
|

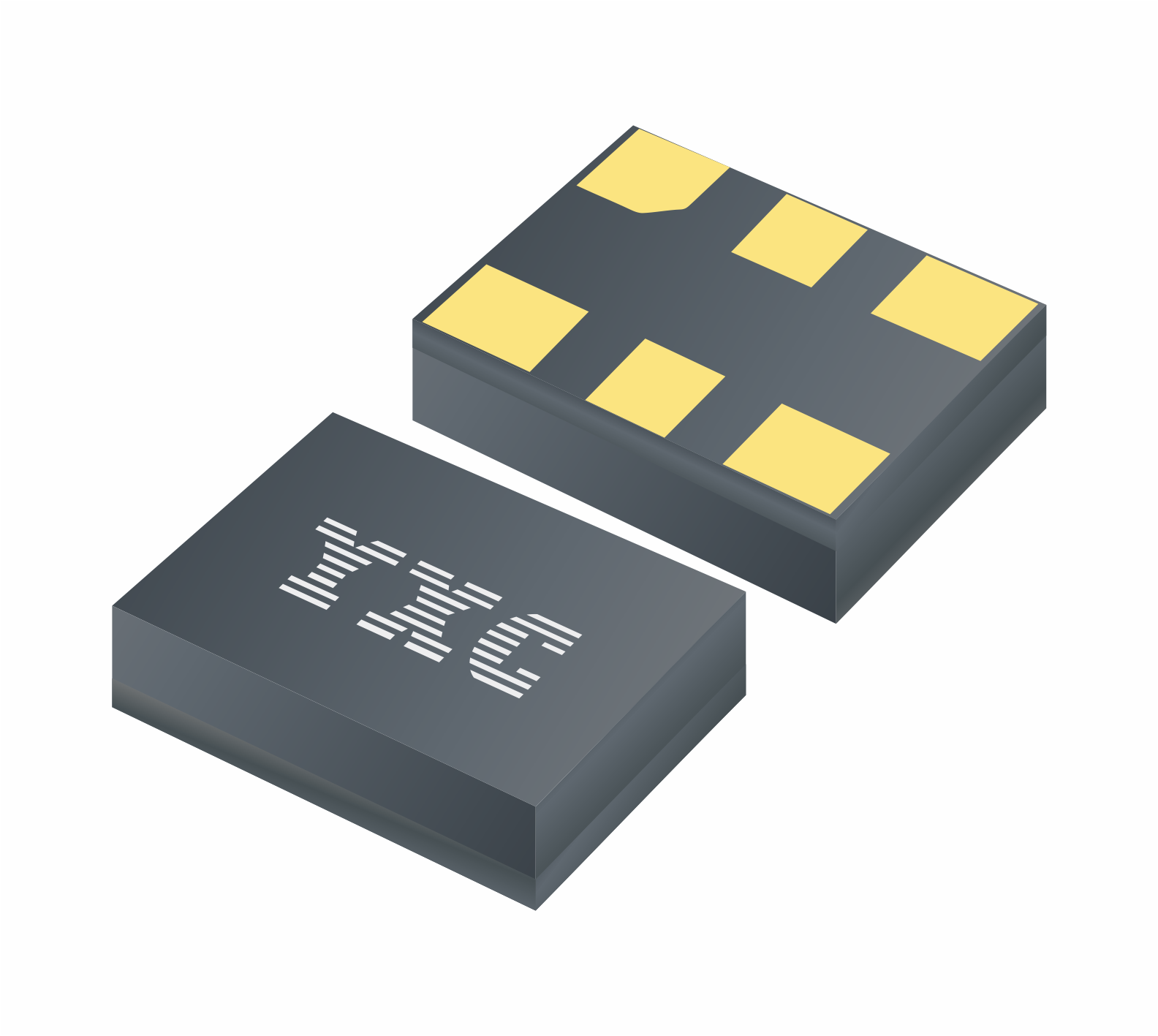

YSO512ET |
1.8/2.5/3/3.3V
|
10,12,12.8,19.2,20,24.576
25,30,32,40,48mhz
|
5.0 x 3.2
7.0 x 5.0
|
-40℃~+85℃
|
±0.1ppm
|
CMOS / Clipped Sine Wave
|
Download
|
|

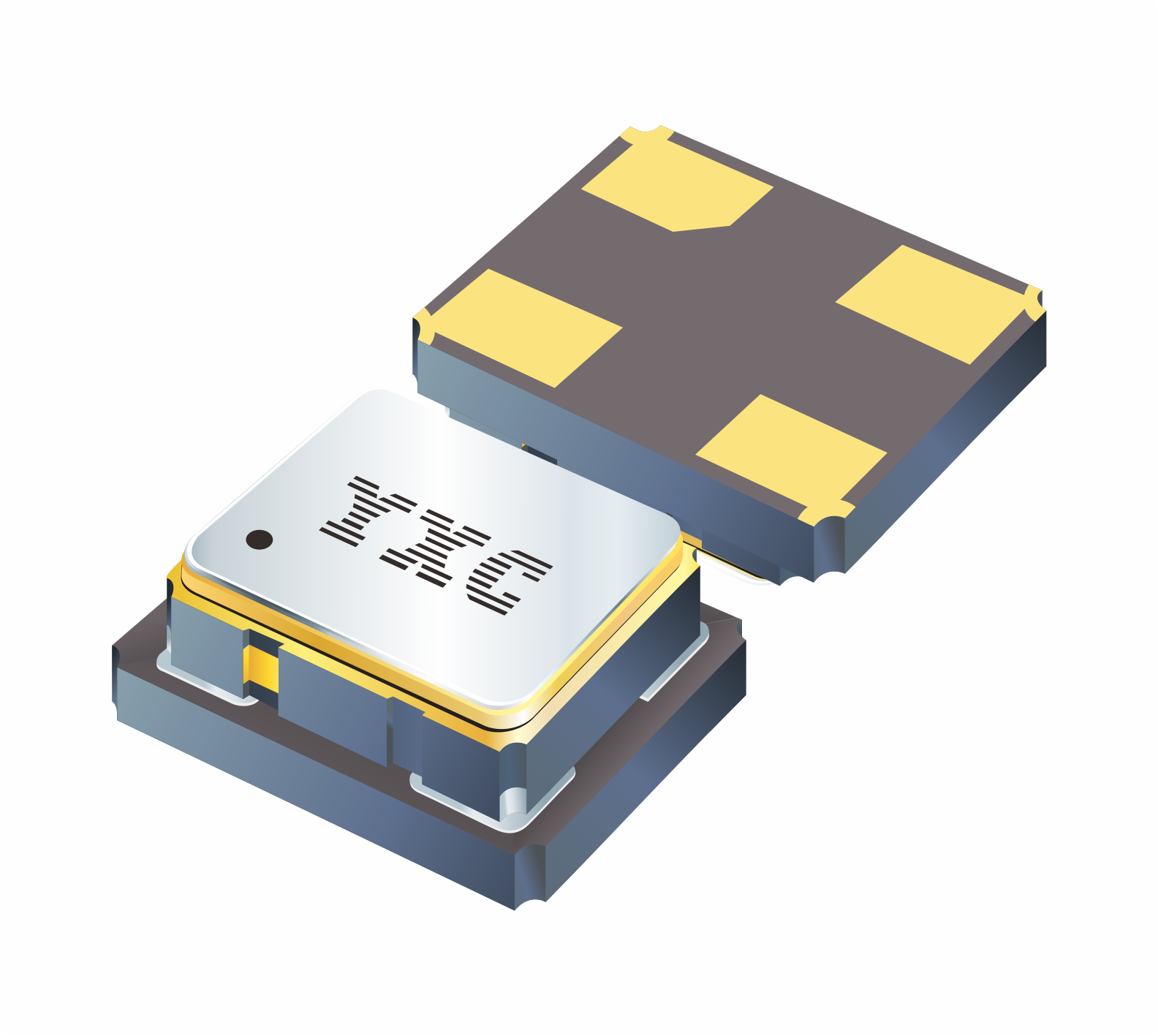

YSO510TP |
1.8V/2.5/3V/3.3V
|
10-52MHz
|
2.0x1.6
2.5x2.0
3.2x2.5
5.0x3.2
7.0x5.0
|
-40℃~+85℃
|
±0.05ppm
±0.28ppm
±0.5ppm
±1.5ppm
±2.5ppm
|
Clipped Sine wave or CMOS
|
Download
|
|

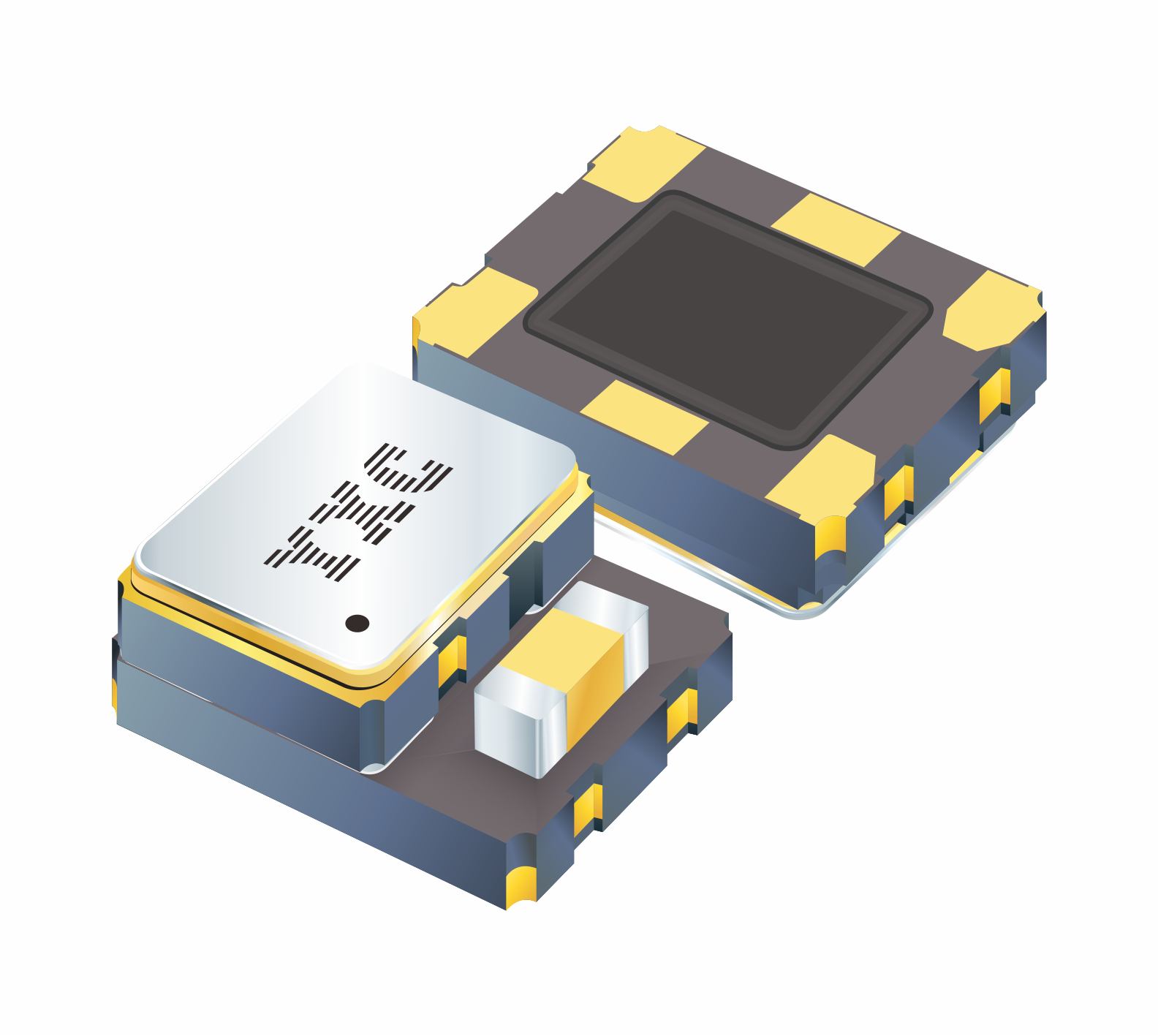

YSO511PJ |
2.5/3.3V
|
10-250MHz
|
3.2 x 2.5
7.0 x 5.0
|
-40℃~+85℃
|
2.5ppm
|
CMOS
|
Download
|
