Differential VCXO
Inserting a variable diode into an ordinary quartz crystal oscillator circuit to achieve a small adjustment of the output frequency by the control voltage is a crystal oscillator device, which is mainly used for frequency standards such as infrastructure base stations and measuring instruments. Phase-locked loop or frequency fine-tuning has good transmission performance and strong anti-interference.
| Picture |
Model |
Voltage
|
Frequency
|
Dimension
|
Operating Temp
|
Frequency Tolerance
|
Output
|
Datasheet |
|

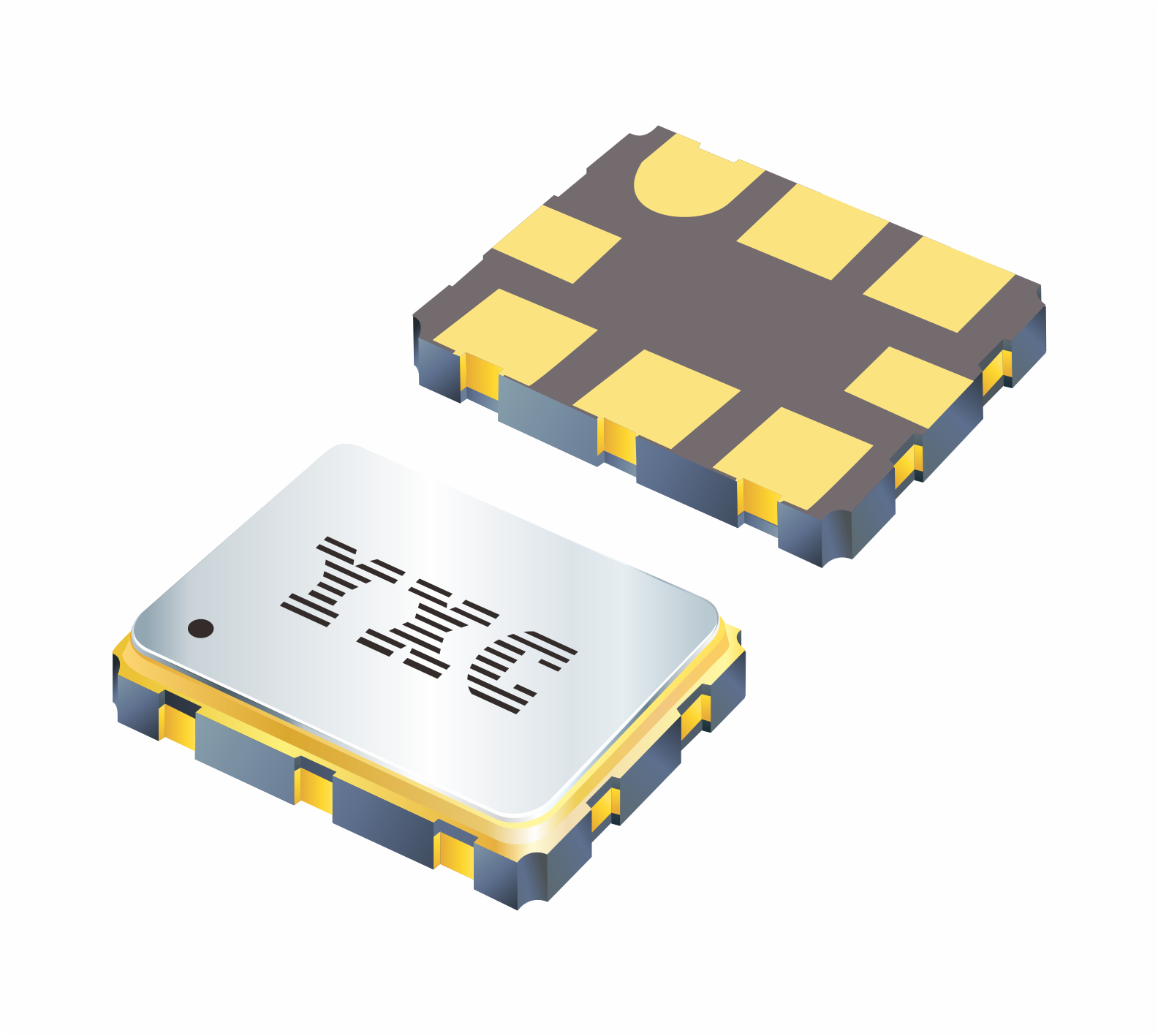

YSV221PJ |
1.8/ 2.5/ 3.3V
|
15~2100MHz
|
5.0x 3.2
7.0x5.0
|
-40℃~+85℃
|
±25ppm
±50ppm
±100ppm
|
LVPECL/LVDS/HCSL/CML
|
Download
|
|

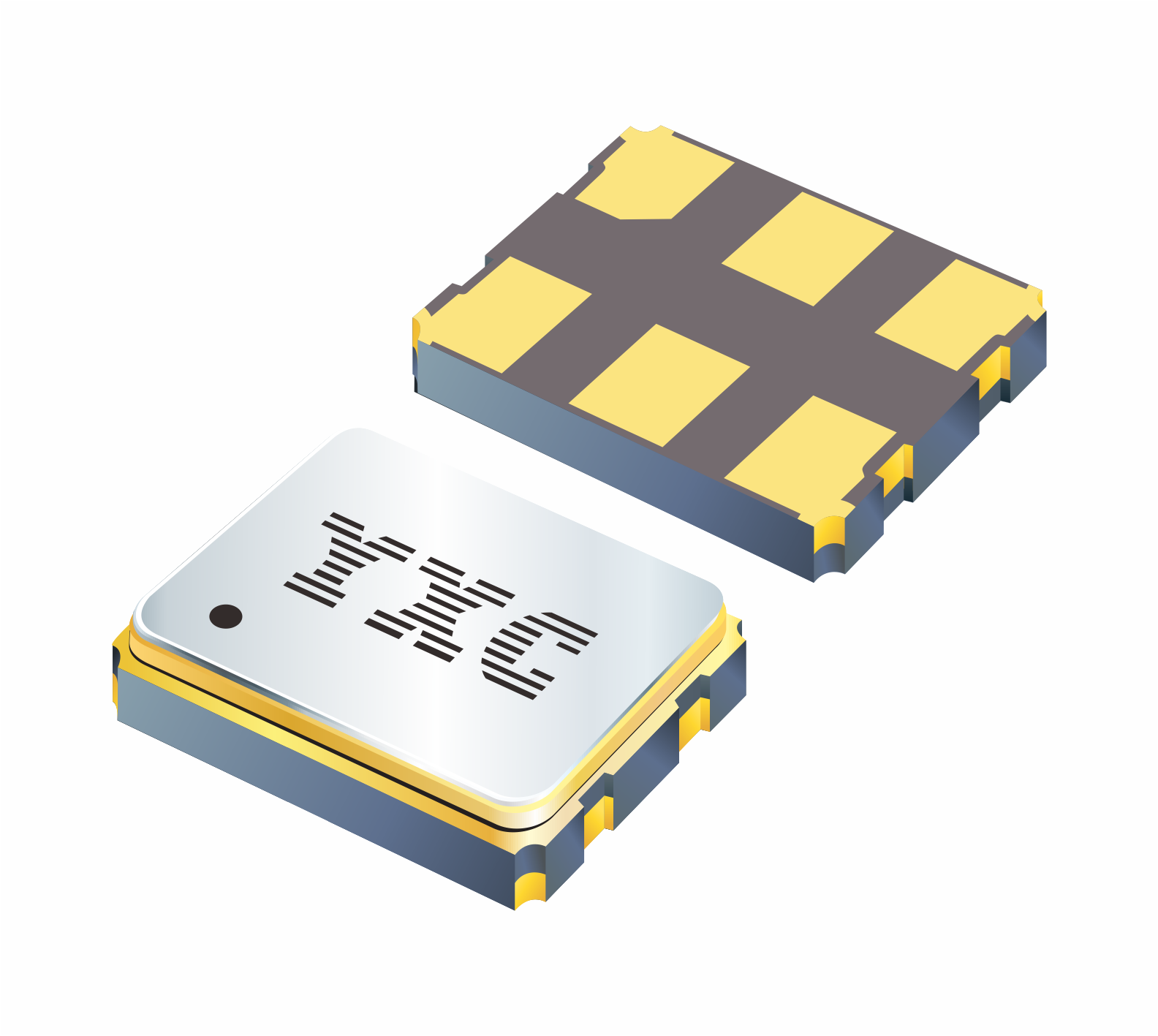

YSV220PR |
2.5V, 3.3V
|
10MHz-1500MHz
|
3.2 x 2.5 x 1.2 mm
5.0 x 3.2 x 1.3 mm
7.0 x 5.0 x 1.3 mm
|
-40℃~+85℃
|
±50ppm
|
LVDS LVPECL
|
Download
|
