TCXO（VCTCXO）
Our Automotive crystals can work in an environment of -40 ° C to + 125 ° C after rigorous testing. They satisfy the AEC-Q200 certification standards,which are highly reliable and enable the vehicle to work normally under harsh condition.
Not all frequencies in the frequency range are available, please contact us for delivery date if unconventional frequency.
| Picture |
Model |
Frequency |
Dimension |
Load Capacitance |
Operating Temp |
Frequency Tolerance |
Datasheet |
|
YSX1612SC |
24MHz-60MHz |
1.6 x 1.2 x 0.35 mm |
8pF, 12pF, or specify |
-40℃~+125℃ |
±10ppm ±30ppm |
Download
|
|
YSX211SC |
16MHz-72MHz |
2.0 x 1.6 x 0.5 mm |
8pF, 10pF,
or specify |
-40℃~+125℃ |
±10ppm
±30ppm |
Download
|
|

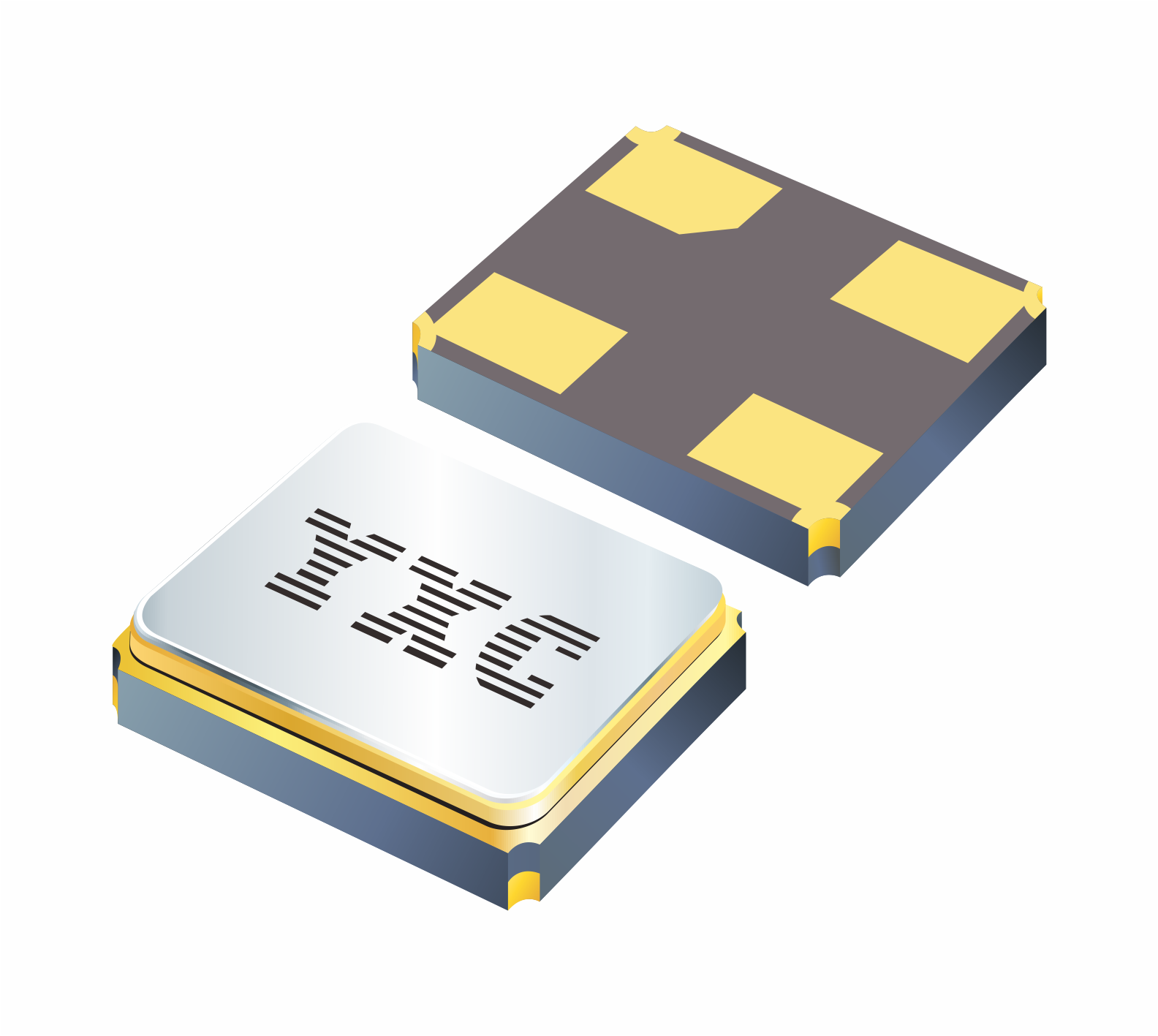

YSX221SC |
12MHz-80MHz |
2.5 x 2.0 x 0.55 mm |
8pF, 10pF, or specify |
-40℃~+125℃ |
±10ppm ±30ppm |
Download
|
|
YSX321SC |
8.0MHz-66MHz |
3.2 x 2.5 x 0.7 mm |
8pF, 12pF,
or specify |
-40℃~+125℃ |
±10ppm
±30ppm |
Download
|
|

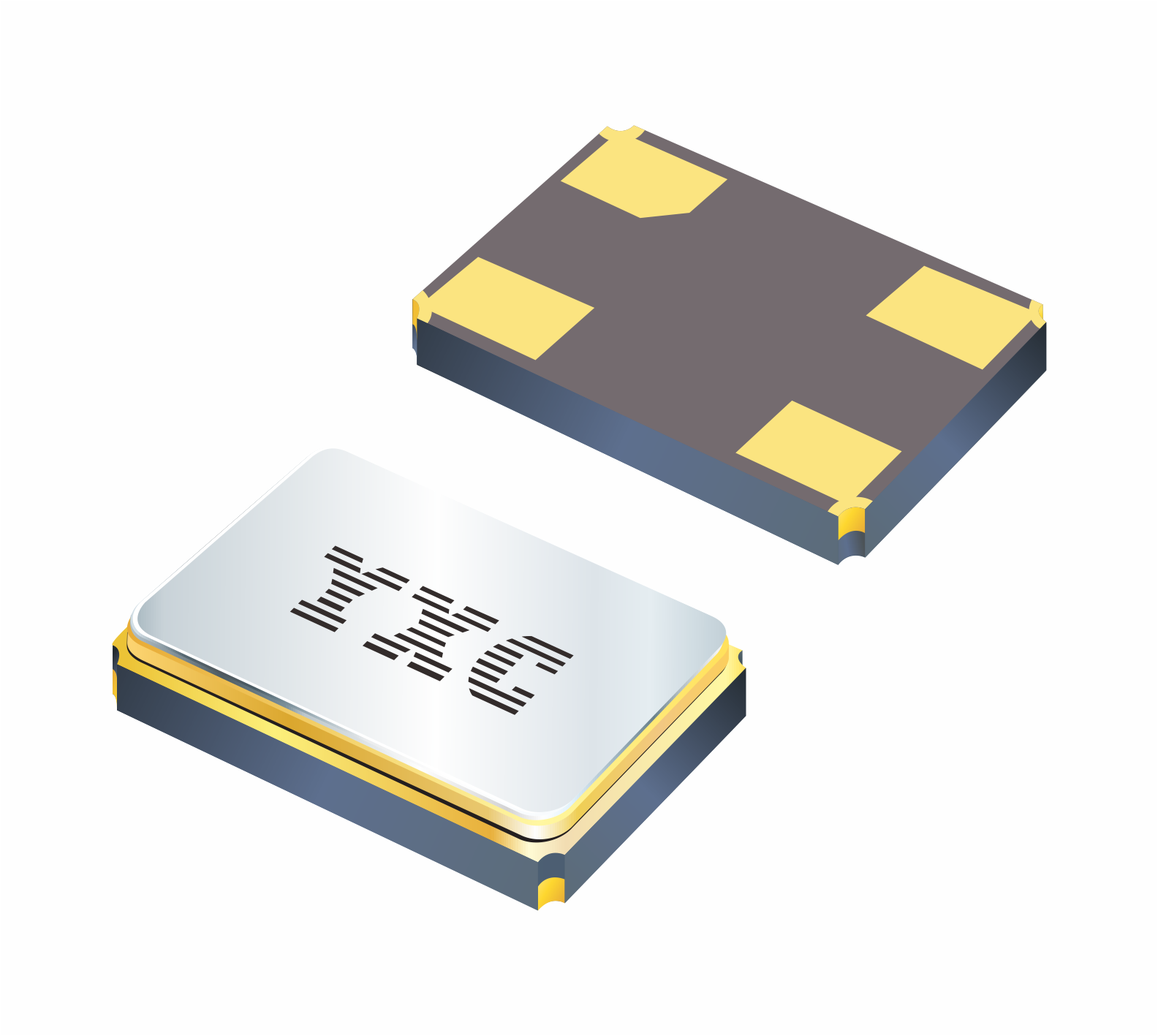

YSX531SC |
7.6MHz-54MHz |
5.0 x 3.2 x 0.85 mm |
18pF, 20pF |
-40℃~+125℃ |
±10ppm ±30ppm |
Download
|
|

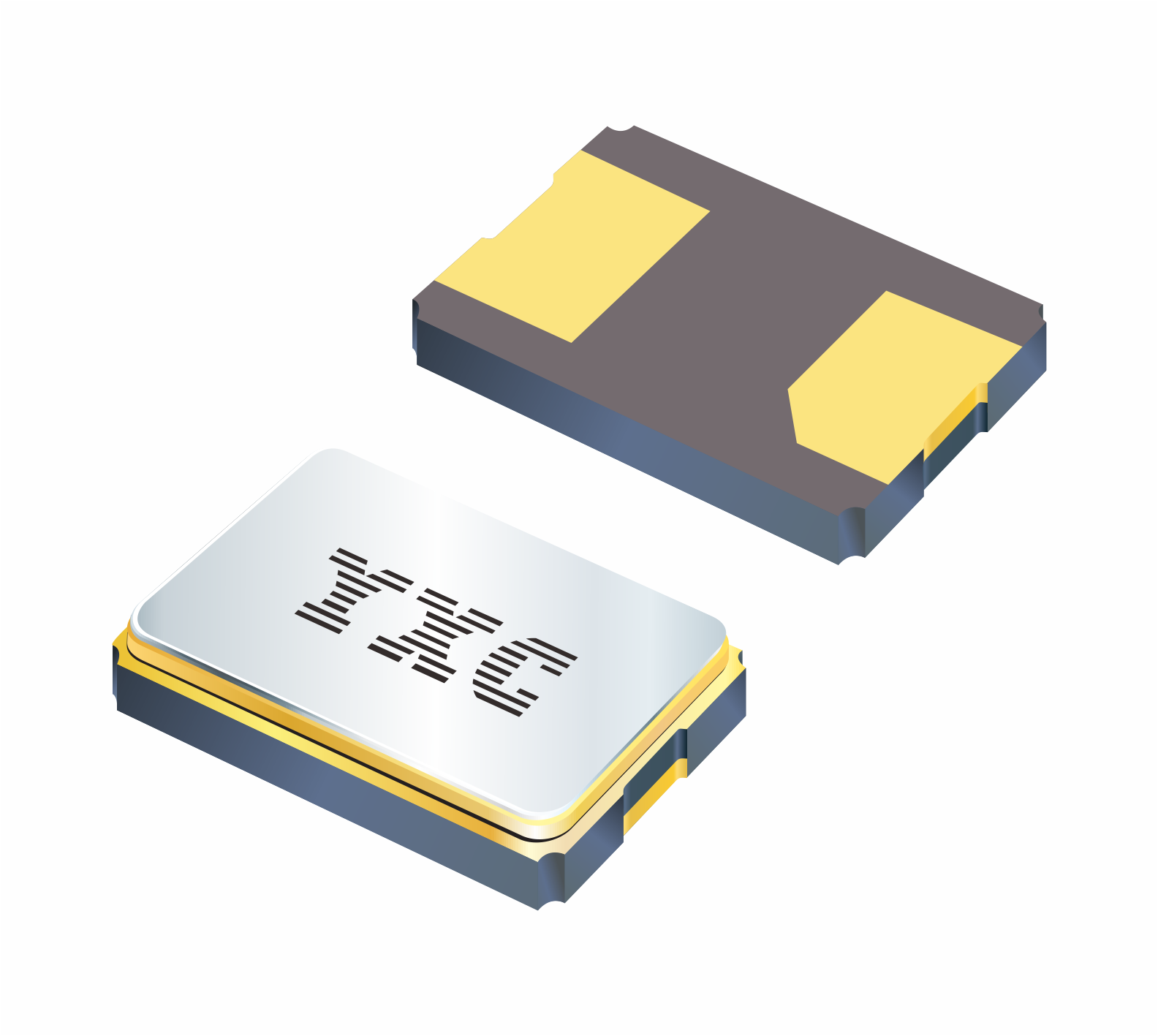

YSX530SC |
7.6MHz-54MHz |
5.0 x 3.2 x 1.1 mm |
18pF, 20pF |
-40℃~+125℃ |
±10ppm ±30ppm |
Download
|
