Automotive Grade
*Package: 2.0x1.6mm
*SMD metal package
*High stability, high performance
*Automotive grade reliability
*Operating temperature: -40~+125℃
*AEC-Q200 & IATF16949 certified
| Item / Type | YSX211SC |
| Standard Frequency | 16 to 72 MHz |
| Dimensions | 2.00 x 1.60 x 0.50 mm |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 8pF, 10pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 30 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 50 ppm, or specify |
| Operating Temperature | - 40 ~ + 125℃, or specify |
| Storage Temperature | - 55 ~ + 125℃ |
| Shunt Capacitance | 3 pF Max. |
| Level of Drive | 1~200μWMax. (100uW typical) |
| Frequency Aging (at 25 ℃) | ± 2 ppm / year Max. |
| Quartz Crystal Resonator |
Series | Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Stability (ppm) |
Pin | Material | Operating Temp |
- | Remark |
| X | E | 2.0 x 1.6 | 16M | K | B | 4 | S | A | - | * |
| Fundamental | |
| 16.0 ~ 20.0MHz | 200 Ω Max. |
| 21.0 ~ 25.0MHz | 120 Ω Max. |
| 26.0 ~40.0 MHz | 100 Ω Max. |
| 41.0~72.0 MHz | 60 Ω Max. |

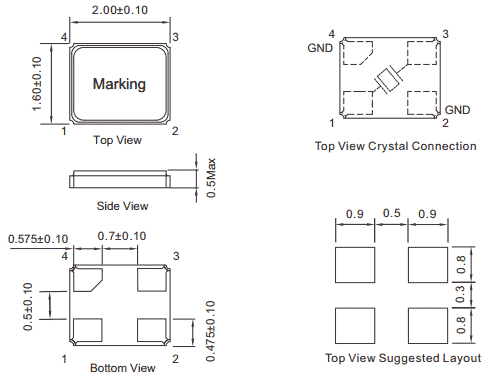

External Dimensions
Frequency : 16MHz-72MHz
Dimension : 2.0 x 1.6 x 0.5 mm
Load Capacitance : 8pF, 10pF, or specify
Operating Temp :
Frequency Tolerance : ±10ppm ±30ppm
