Automotive Grade
*Small package: 1.6x1.2mm
*SMD metal package
*High stability, high performance
*Automotive grade reliability
*Operating temperature: -40~+125℃
*AEC-Q200 & IATF16949 certified
| Item / Type | YSX1612SC |
| Standard Frequency | 24 to 60 MHz |
| Dimensions | 1.6 x 1.2 x 0.35 mm |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 8pF, 9pF, 12pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 30 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 50 ppm, or specify |
| Operating Temperature | - 40 ~ + 125℃, or specify |
| Storage Temperature | - 55 ~ + 125℃, or specify |
| Shunt Capacitance | 3 pF Max. |
| Level of Drive | 50 μW Max. |
| Frequency Aging (at 25 ℃) | ± 2 ppm / year Max. |
| Quartz Crystal Resonator |
Series | Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Stability (ppm) |
Pin | Material | Operating Temp |
- | Remark |
| X | F | 1.6 x 1.2 | 24M | K | B | 4 | S | A | - | * |
| Fundamental | |
| 24.0 ~40.0 MHz | 150 Ω Max. |
| 41.0~ 66.0 MHz | 100 Ω Max. |

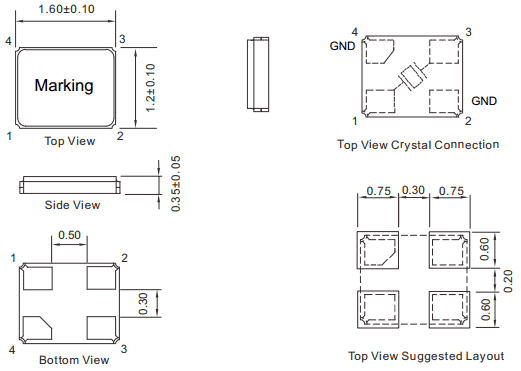

External Dimensions
Frequency : 24MHz-60MHz
Dimension : 1.6 x 1.2 x 0.35 mm
Load Capacitance : 8pF, 12pF, or specify
Operating Temp :
Frequency Tolerance : ±10ppm ±30ppm
