YSO131LR

*CMOS output
*1.2V operating voltage
*Low voltage, low power consumption
*High precision, high stability
*Packaging: 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm, 5.0x3.2mm, 7.0x5.0mm

Datasheet Contact Us

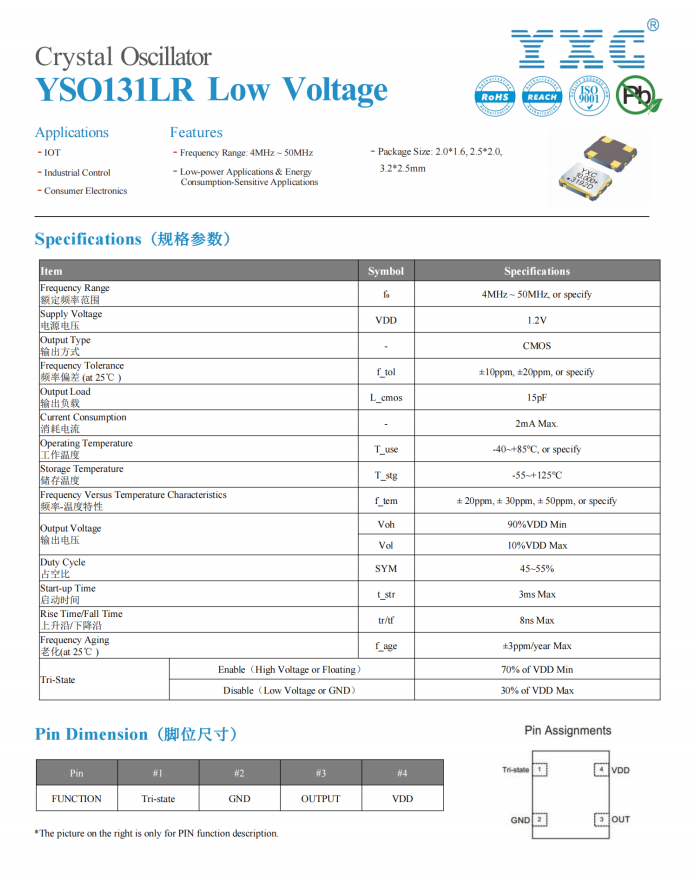

Parameter Table
Sample
Submit

Voltage : 1.2V

Frequency : 20~50MHz

Dimension : 2.0x1.6 2.5x2.0 3.2x2.5 5.0x3.2 7.0x5.0

Operating Temp : -40℃~+85℃

Frequency Tolerance : ±30ppm

Output : CMOS
