Oscillators
I²C programmable differential crystal oscillator based on PLL technology, offering flexible frequency programming from 200 kHz to 1.5 GHz with 10 ppt resolution, ultra-low jitter, and on-chip NVM storage.
Specifications
Features
♦ Output programmable to any frequency from 200 kHz to 1.5GHz with 10ppt resolution.
♦ Ultra Low Jitter:
-70fs Typ Jrms,12kHz-20MHz
-26fs Typ Jrms,12kHz-20MHz with 4MHz
♦ Fractional N fully integrated PLL.
♦ Compatible with 3.3V,2.5V and 1.8V supply.
♦ 12C Interface supports Standard (100KHz) and Fast Mode(400KHz).
♦ Best in class PSRR perfomance of-85dBC typical.
♦ LVPECL.HCSL-LPLVDS.LVDS-Boost, HCSL, AC Coupled CML output options available on differential output pads.
♦ HCSL-LP Output Driver type frequency support is from 200kHz to 500MHz.
♦ +/-25ppm stability (-40°C to 85°C).
♦ Availablein 8pin 3.2mmx2.5mm LGA Package.
Applications
♦ 100G/200G/400G0TN,coherent optics
♦ 10G/40G/100G optical ethemet
♦ 3G-SDI/12G-SDI/24G-SDI broadcast video
♦ Datacenter
♦ Test and measurement
♦ Clock and data recover
♦ FPGA/ASIC clocking
|

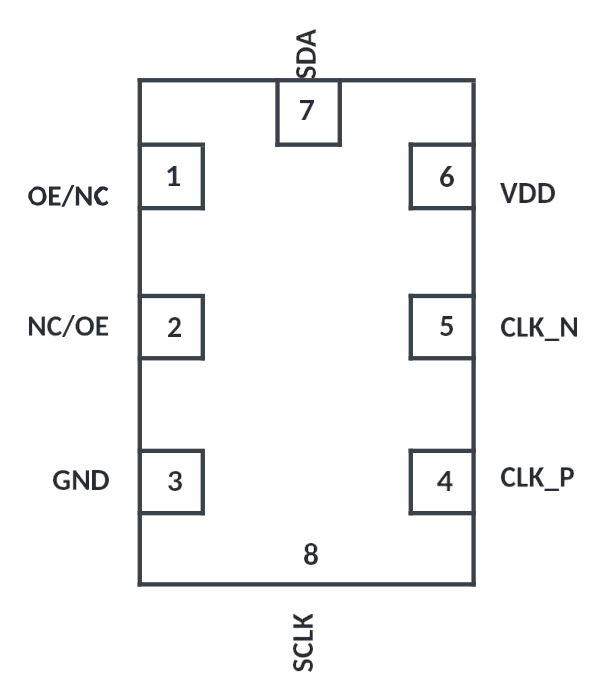

Pin Name
|
Pin No.
|
I/O Type
|
Function
|
|
OE/NC
|
1, 2
|
Input
|
Selectable by Ordering Information
OE = Output Enable; NC = No connect
|
|
GND
|
3
|
GND
|
|
|
CLK_P
|
4
|
Output
|
Clock + for differential Output. Single Ended CMOS Output
|
|
CLK_N
|
5
|
Output
|
Clock - for differential Output. Single Ended CMOS Output
|
|
VDD
|
6
|
Power
|
Chip Power Supply
|
|
SDA
|
7
|
Input/Output
|
I2C Serial Data
|
|
SCLK
|
8
|
Input
|
I2C Serial Clock
|
Voltage : 1.8V/2.5V/3.3V
Frequency : 200 KHz~1.5 GHz
Dimension : 8-Pin LGA 3.2mm x 2.5mm
Operating Temp :
Frequency Tolerance : ±25 PPM
Output : LVDS / LVPECL / HCSL / LPHCSL / LVDS-Boost / CML
