*CMOS output
*5V operating voltage
*Wide frequency range (1~100MHz)
*High precision, high stability
*Shock and vibration resistance, high reliability
*Packaging: 3.2x2.5mm, 5.0x3.2mm, 7.0x5.0mm
| Item / Type | YSO130HR |
| Output Frequency Range | 1MHz to 100MHz |
| Dimensions | 3.2 x 2.5 x 0.90 mm 5.0 x 3.2 x 1.20 mm 7.0 x 5.0 x 1.40 mm |
| Output Type | CMOS |
| Supply Voltage | 5.0V |
| Oscillator Mode | Fundamental |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 20 ppm, or specify |
| Output Load | 15pF, or specify |
| Operating Temperature | -40 ~ +85 ℃, or specify |
| Frequency Versus Temperature Characteristics | ±20 ppm, ± 30 ppm, ± 50 ppm, or specify |
| Storage Temperature | - 55 ~ + 125 ℃ |
| Voltage Vol ( Max. ) / Vol ( Min. ) | 90%Vdd min. /10%Vdd max |
| Symmetry | 45~55% |
| Rise ( Tr ) / Fall ( Tf ) Time | 4ns Max. |
| Start-up Time | 3ms Max. |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
| Oscillator | Type Code |
Dimensions (mm) |
Frequency (Hz) |
Voltage (V) |
Stability (ppm) |
Output | Pin | Material | Operating Temp |
| O | H | 3.2 x 2.5 | 28.888M | F | B | A | 4 | S | L |

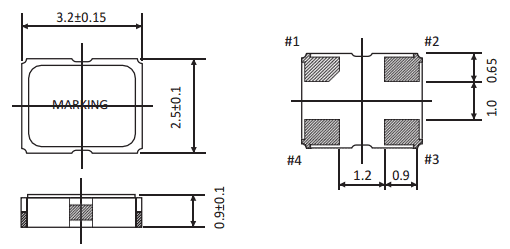

3.2x2.5x1.00mm
5.0x3.2x1.20mm

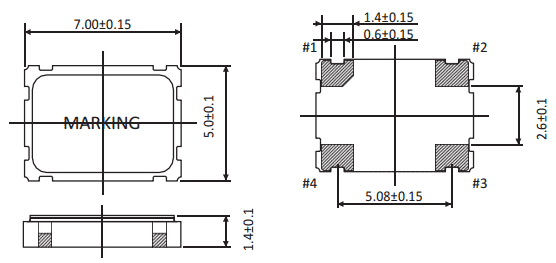

7.0x5.0x1.40mmVoltage : 5.0V
Frequency : 1MHz-100MHz
Dimension : 3.2 x 2.5 x 0.90 mm 5.0 x 3.2 x 1.20 mm 7.0 x 5.0 x 1.40 mm
Operating Temp :
Frequency Tolerance : ±10ppm ±20ppm
Output : CMOS
