TG-5006CJ

External Dimensions: 2.0 x 1.6 mm

PN: X1G004131003700 X1G004131001000

Application: Wireless communication devices (CDMA, WCDMA, LTE, WIMAX)

Datasheet Contact Us
Parameter Table
Sample
Item Symbol Specifications Conditions/Remarks
VC-TCXO TCXO
Output frequency range f0 13.000MHz to 52.000MHz
16.367667MHz, 16.368MHz, 16.369MHz,
19.2MHz, 26MHz, 38.4MHz
Standard frequency
Supply voltage VCC 1.8 V ± 0.1 V / 2.8 V ± 5 % / 3.0 V ± 5 % / 3.3 V ± 5 % Range :1.7 V to 3.465 V
Storage temperature T_stg -40°C to +90°C Store as single product.
Operating temperature T_use -30°C to +85°C Standard stability version
Frequency tolerance f_tol ±2.0 ×10-6 Max. After reflow, +25 °C
Frequency/temperature characteristics fo-TC ±0.5 × 10-6 Max./-30°C to +85°C High stability version for GPS
±2.0 × 10-6 Max./-30°C to +85°C Standard stability version
Frequency/load coefficient fo-Load ±0.2 × 10-6 Max. 10kΩ // 10pF ±10%
Frequency/voltage coefficient fo-VCC ±0.2 × 10-6 Max. VCC ± 5%
Frequency aging f_age ±1.0 × 10-6 Max. +25°C, First year,
13MHz≤ f0≤40MHz
±1.5 × 10-6 Max. +25°C, First year, 40MHz< f0≤52MHz
Current consumption ICC 1.5mA Max. 13MHz≤ f0≤26MHz
2.0mA Max. 26MHz< f0≤52MHz
Input resistance Rin 500kΩ Min. - VC- GND (DC)
Frequency control range f_cont ±8 × 10-6 to ±15 × 10-6 - VC=0.9V ±0.6V (Vcc =1.8V) or
VC=1.4 V ±1.0 V (Vcc=2.8 V)
Frequency change polarity - Positive polarity -
Symmetry SYM 40% to 60% GND level (DC cut)
Output voltage VPP 0.8V Min. Peak to peak
Output load condition Load_R 10kΩ DC cut capacitor = 0.01µF

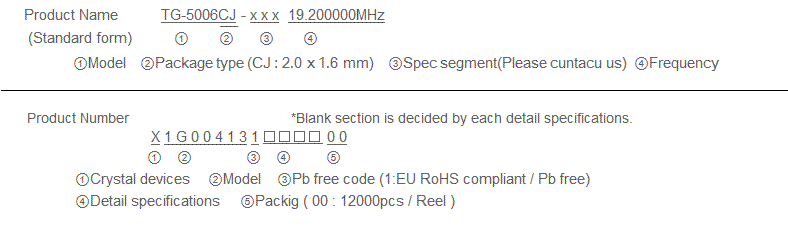

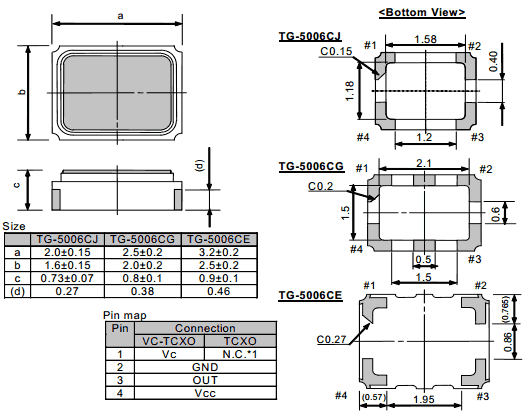

External Dimensions

(Unit: mm)

Please keep "N.C." pin OPEN condition or GND connection.
"N.C." pin doesn’t work as a ground pin.

Footprint (Recommended)

(Unit: mm)

For stable operation, please add a bypasscapacitor (0.01uF to 0.1uF) between Vcc and GND.
Please place it as close to TCXO as possible.

Submit

Voltage : 1.7V~3.465V

Frequency : 13MHz-52MHz

Dimension : 2.0 x 1.6 mm

Operating Temp : -30℃~+85℃

Frequency Tolerance : ±0.5ppm ±2ppm

Output : -
