Oscillators
Package: 1000 pieces/Reel
ROHS STATUS: Compliant
PN: X1G004501000300
Applications: Wireless communication, PC and LCDM

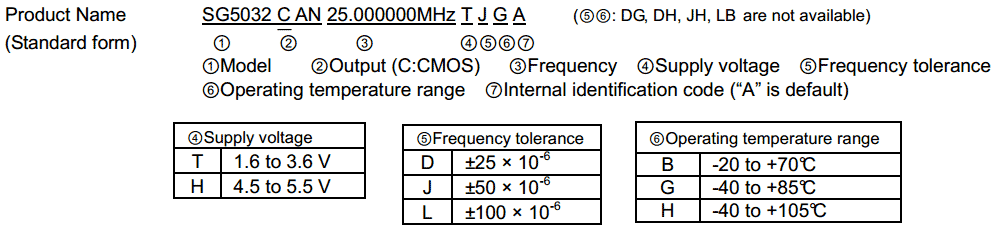

| Item | Symbol | SG7050CCN | Conditions / Remarks |
| Output frequency range | f0 | 2.5MHz to 50MHz | Please contact us about available frequencies. |
| Supply voltage | VCC | H: 4.5 V to 5.5 V | |
| Storage temperature | T_stg | -40°C to +125°C | Storage as single product |
| Operating temperature | T_use | B: -20 °C to +70 °C | |
| G: -40 °C to +85 °C | |||
| Frequency tolerance | f_tol | J: ±50 × 10-6 | |
| Current consumption | ICC | 20mA Max. | No load condition Maximum frequency. |
| Disable current | I_dis | 10mA Max. | OE=GND |
| Symmetry | SYM | 40 % to 60 % | 50% VCClevel, L_CMOS ≦ 50 pF |
| Output voltage | VOH | VCC - 0.4V Min. | |
| VOL | 0.4V Max. | ||
| Output load condition(CMOS) | L_CMOS | 50 pF Max. | |
| Input voltage | VIH | 80% VCC Min. | OE terminal |
| VIL | 20% VCC Min. | ||
| Rise time/ Fall time |
tr / tf | 5ns Max. | 20 % VCC ~ 80 % VCClevel, L_CMOS ≦50 pF |
| Start-up time | t_str | 5ms Max. | t=0 at 90 % VCC ,+85°C |
| Frequency aging | f_aging | ±5 × 10-6 / year Max. | +25°C, First year. |
Voltage : 4.5V~5.5V
Frequency : 2.5MHz-50MHz

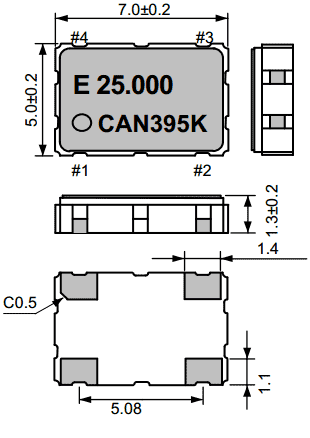

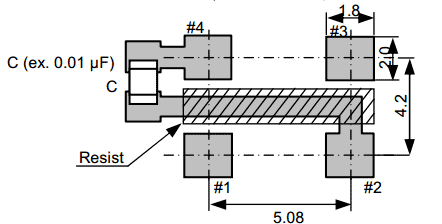

Dimension : 7.0 x 5.0 mm
Operating Temp :
Frequency Tolerance : ±50ppm ±100ppm
Output : CMOS
