Oscillators
Dimensions: 3.2 x 2.5 mm
Package: 2000 pieces/Reel
ROHS STATUS: Compliant
Applications: Wireless communication, PC and LCDM
| Item | Symbol | Specifications | Condition/Remarks | ||
| SG-310 SDN | SG-310 SCN | ||||
| Output frequency range |
f0 | 3.000MHz to 80.000MHz | |||
| Supply voltage | VCC | 2.5V Typ. 2.2V to 2.7V |
3.3V Typ. 2.7V to 3.6V |
||
| Storage temperature range |
T_stg | -40°C to +125°C | Store as bare product. | ||
| Operating temperature range |
T_use | -40°C to +85°C (+105 °C) | Please contact us about +85 °C < T_use | ||
| Frequency tolerance | f_tol | D: ±20 × 10-6 S: ±25 × 10-6 B: ±50 × 10-6 C: ±100 × 10-6 |
-20°C to +70°C | ||
| P: ±20 × 10-6 R: ±25 × 10-6 |
-30°C to +85°C | ||||
| J: ±25 × 10-6 L: ±50 × 10-6 M: ±100 × 10-6 |
-40°C to +85°C | ||||
| Current consumption | ICC | 4.0mA Max. | 5.0mA Max. | No load condition, 3MHz ≦ f0 ≦ 48MHz |
|
| 6.0mA Max. | 7.0mA Max. | No load condition, 48MHz < f0 ≦ 80MHz |
|||
| Stand-by current | I_std | 10µA Max. | ST | ||
| Symmetry | SYM | 45% to 55% | 3MHz ≦ f0 ≦ 80MHz | 50% VCClevel L_CMOS ≦ 15pF |
|
| Output voltage | VOH | 90% VCC Min. | IOH=-3mA | ||
| VOL | 10% VCC Max. | IOL= 3mA | |||
| Output load condition (CMOS) |
L_CMOS | 15pF Max. | |||
| Input voltage | VIH | 70% VCC Min. | ST | ||
| VIL | 30% VCC Max. | ||||
| Rise time / Fall time | tr / tf | 4ns Max. | 20% VCC to 80% VCC level, L_CMOS=15pF |
||
| Start-up time | t_str | 2ms Max. | t=0 at 90% VCC | ||
| Frequency aging | f_aging | ±3 × 10-6 / year Max. | +25°C,First year | ||
| ±10 × 10-6 Max. | +25°C,10 years | ||||

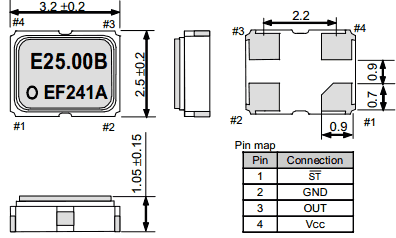

(Unit: mm)
Note.
ST pin = HIGH or "open" : Specified frequency output.
ST pin = LOW : Output is high impedance, oscillation stops.
Footprint (Recommended)
(Unit: mm)
To maintain stable operation, provide a 0.01uF to 0.1uF by-pass capacitor at a location as near as possible to the power source terminal of the crystal product (between Vcc - GND).
Voltage : 2.7V~3.6V
Frequency : 3MHz-80MHz
Dimension : 3.2 x 2.5 mm
Operating Temp :
Frequency Tolerance : Specify
Output : CMOS
