SG-3030LC

PACKAGE: 2000 pieces/Reel

ROHS STATUS: Compliant

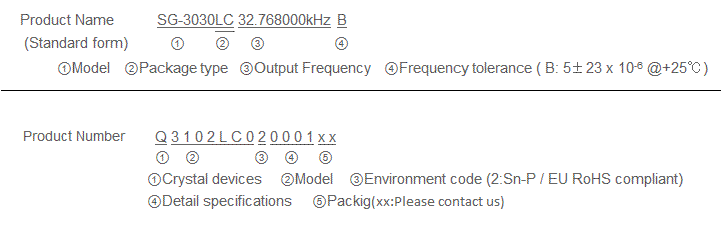

PN: Q3102LC02000500

Applications: Mobile phone, Tablet, Video Cams, Fitness watches

Datasheet Contact Us

Parameter Table

Sample

Item	Symbol	Specifications	Condition/Remarks
Output frequency range	f₀	32.768 kHz
Supply voltage	V_CC	1.5 V to 5.5 V
Interface power supply voltage	V_io	1.5 V to 5.5 V
Storage temperature	T_stg	-55 °C to +125 °C	Store as bare product
Operation temperature	T_use	-40 °C to +85 °C
Frequency tolerance	f_tol	5 ± 23 × 10^-6	+25 °C , V_CC = 3.3 V
Frequency temperature coefficient	f₀ - T_C	+10 × 10^-6/ -120 × 10^-6	-20 °C to +70 °C (+25 °C is reference)
Frequency/ voltage coefficient	f₀ - V_CC	2 × 10^-6 / V Max.	+25 °C
Current consumption	l_CC	2 µA Max.	3.3 V , No load condition
Symmetry	SYM	45 % to 55 %	1/2 V_CC (V_io) level
Output voltage	V_OH	V_io - 0.4 V Min.	l_OH = -0.4 mAV
Output voltage	V_OL	0.4V Max.	l_ol = 0.4mA
Output load condition(CMOS)	L_CMOS	15 pF Max.	CMOS load
Rise time/Fall time	t_r / t_f	200 ns Max.	CMOS load: 20 % V_CC(V_io) to 80 % V_CC(V_io)level
Start-up time	t_str	1 s Max.	Time at minimum Supply voltage to be 0 s +25 °C(V_CC = 2.0 V to 5.0 V)
Frequency aging	f_aging	±5 × 10^-6 / year Max.	+25 °C , V_CC = 3.3 V , First year

Block diagrams

*If VIO function is not used connect #1 to V_CC
External dimension

*Stop using the glue

Any glue must never use it after soldering LC-package to a circuit board.
This product has glass on the back side of a package.When glue invasions between circuit board side and glass side,
then glass cracks by thermal expansion of glue.
In this case a crystal oscillation stops.Consider glue abolition or glue do not touch to LC-package.

(Unit: mm)

Footprint (Recommended)

To maintain stable operation, provide a 0.01 µF to 0.1 µF by-pass capacitor at a location as near as possible
to the power source terminal of the crystal product (between V_CC - GND)

(Unit: mm)
