Oscillators
Hot-sale frequencies: 12MHz, 20MHz, 27MHz
ROHS STATUS: Compliant

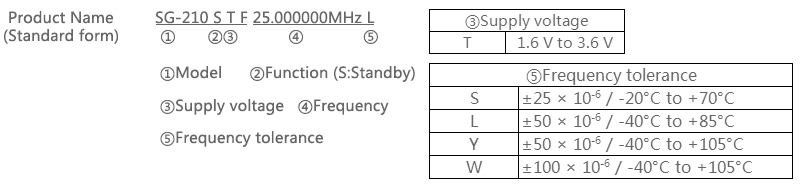

PN: SG-210STF 20.0000ML0 X1G004171002900
Applications: Wireless communication, PC
| Item | Symbol | SG-210STF | Conditions / Remarks |
| Output frequency range |
f0 | 1MHz to 75MHz | Please contact us about available frequencies. |
| Supply voltage | VCC | H: 1.6 V to 3.6 V | |
| Storage temperature |
T_stg | -40°C to +125°C | Storage as single product |
| Operating temperature |
T_use | -40 °C to +85 °C | |
| -40°C to +125°C | |||
| Frequency tolerance |
f_tol | J: ±25 × 10-6 | |
| Current consumption |
ICC | 1.5mA -3.0mA Max. | No load condition Maximum frequency. |
| Disable current | I_dis | - | OE=GND |
| Symmetry | SYM | 45 % to 55 % | 50% VCClevel, L_CMOS ≦ 50 pF |
| Output voltage | VOH | VCC - 0.4V Min. | |
| VOL | 0.4V Max. | ||
| Output load condition(CMOS) |
L_CMOS | 15 pF Max. | |
| Input voltage | VIH | 80% VCC Min. | OE terminal |
| VIL | 20% VCC Min. | ||
| Start-up time | t_str | 3ms Max. | t=0 at 90 % VCC ,+85°C |
| Frequency aging | f_aging | ±3 × 10-6 / year Max. | +25°C, First year. |
Voltage : 1.6V~3.6V
Frequency : 1MHz-75MHz

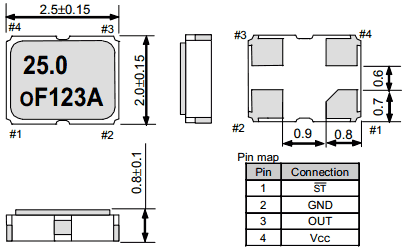

Dimension : 2.5 x 2.0 mm
Operating Temp :
Frequency Tolerance : Specify
Output : CMOS
