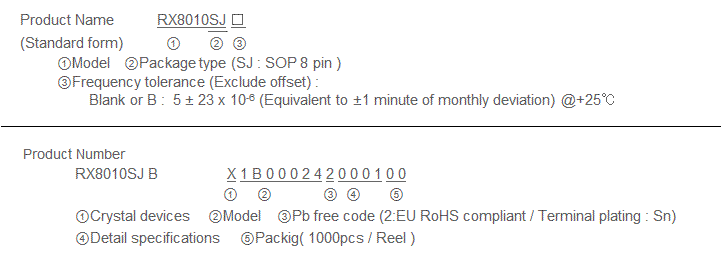

PN: X1B000242000100

Datasheet Contact Us
Parameter Table
Sample

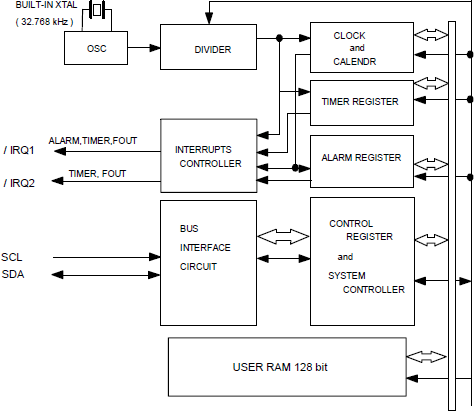

Block Diagram

Overview
  • Interface Type
    • I2C-Bus Interface.(Hi-speed bus specifications 400kHz)
  • Frequency output function
    • It may select a CMOS or open drain output
    • Output frequency can be selected as 32.768kHz, 1024Hz, 1Hz.
  • Timer function
    • Timer function can be set up between 1/4096 second and 65535 hours.
    • Timing period are 1hour, 1min, 64Hz, 4096Hz.
    • It is recorded automatic to TF-bit at the time of event occurrence,and possible to output with /IRQ1 or /IRQ2 pin.
  • Alarm function
    • Alarm function can be set to day of week,day, hour, and minute.
    • It is recorded automatic to AF-bit at the time of event occurrence,and possible to output with /IRQ1 pin.
  • Built-in RAM
    • 128 bit (8 bit x 16 word)

Specifications *Refer to application manual for details

Recommend Operating Conditions

Item Symbol Condition Min. Typ. Max. Unit
Power voltage VDD - 1.6 3.0 5.5 V
Clock voltage VCLK - VLOW 3.0 5.5 V
Operating temperature TOPR - -40 +25 +85 °C

Frequency characteristics

Item Symbol Condition Rating Unit
Frequency
tolerance		 Δ f/f Ta=+25°C
VDD=3.0V		 5±23 * ×10-6
Oscillation
Start-up time		 tSTA Ta=+25°C
VDD=1.6V~5.5V		 1Max s
Ta=-40°C~+85°C
VDD=1.6V~5.5V		 3Max s

*Equivalent to ±1 minute of monthly deviation

Current consumption characteristics

Ta=-40°C to +85°C

Item Symbol Conditions Min. Typ. Max. Unit
Current Consumption lBK Input pins are"L"
fCLK=0Hz
/IRQ1.2=OFF,
TSEL2="1"		 VDD=5V - - 350 nA
VDD=3V - 160 320
l32k fCLK=0Hz
/IRQ1:32.768kHzON,
TSEL2="1"		 VDD=5V - 5.5 7.0 µA



Pin Function
Signal Name Input/
Output		 Function
SCL Input This is a shift clock input pin for serial data transmission.
SDA Bi-directional This is the data input/output pin for serial data transfer.
IRQ1 Output This pin outputs interrupt signals ("L" level) for alarm, timer, time update,
and 32.768kHz. This is an N-ch open-drain output.
/IRQ2 Output This pin outputs interrupt signals ("L" level) for timer and FOUT.
This is a C-MOS output.
VDD Supply This is a power-supply pin.
GND Supply This pin is connected to a ground.

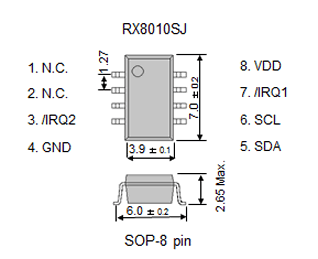

Terminal connection / External dimensions


(Unit: mm)

The metal case inside of the molding compound may be exposed on the top or bottom of this product.
This purely cosmetic and does not have any effect on quality, reliability or electrical specs.

Footprint (Recommended)

(Unit: mm)

To maintain stable operation, provide a 0.1uF by-pass capacitor
at a location as near as possible to the power source terminal of the crystal product (between Vcc - GND).



Submit

Voltage : 1.1V~5.5V

Frequency : 32.768KHz

Dimension : 7.0 x 6.0 x 2.65 mm

Operating Temp : -40℃~+85℃

Frequency Tolerance : ±5ppm

Output : -
