Crystals
*Package: 2.5x2.0mm
*SMD metal package
*±10ppm @25℃
*Operating temperature: -40~+85℃
*High precision, high frequency stability, reliability
*Compliant with RoHS standards, green and environmentally friendly
| Item / Type | YSX221SL |
| Nominal Frequency Range | 12 to 54 MHz |

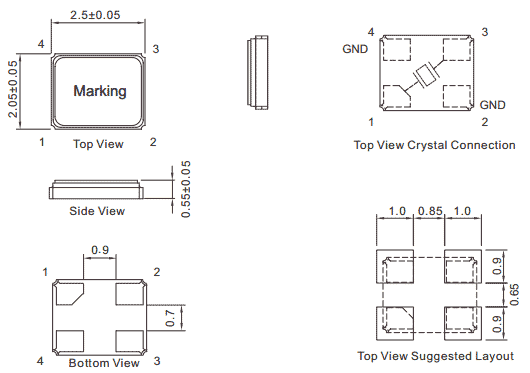

| Dimensions | 2.5 x 2.0 x 0.55 mm |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 12pF, 20pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 20 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 20 ppm, or specify |
| Operating Temperature | - 20 ~ + 70 ℃, - 40 ~ + 85 ℃, or specify |
| Storage Temperature | -40 ~ +85 ℃, or specify |
| Shunt Capacitance | 3 pF Max. |
| Level of Drive | 1-200 μW Max (100μW typical) |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
| Quartz Crystal Resonator |
Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Freq Stability (ppm) |
Pin | Material | Operating Temp |
| X | 2.5 x 2.0 | 12M | S | B | 4 | S | C |
| Fundamental | |
| 12 to 14 MHz | 150Ω Max. |
| 14 to 30 MHz | 100Ω Max. |
| 30 to 48 MHz | 60Ω Max. |
| 48 to 54 MHz | 50Ω Max. |
Frequency : 12MHz-54MHz
Dimension : 2.5 x 2.0 x 0.55 mm
Load Capacitance : 8pF, 9pF, 10pF, 12pF
Operating Temp :
Frequency Tolerance : ±10ppm ±20ppm
