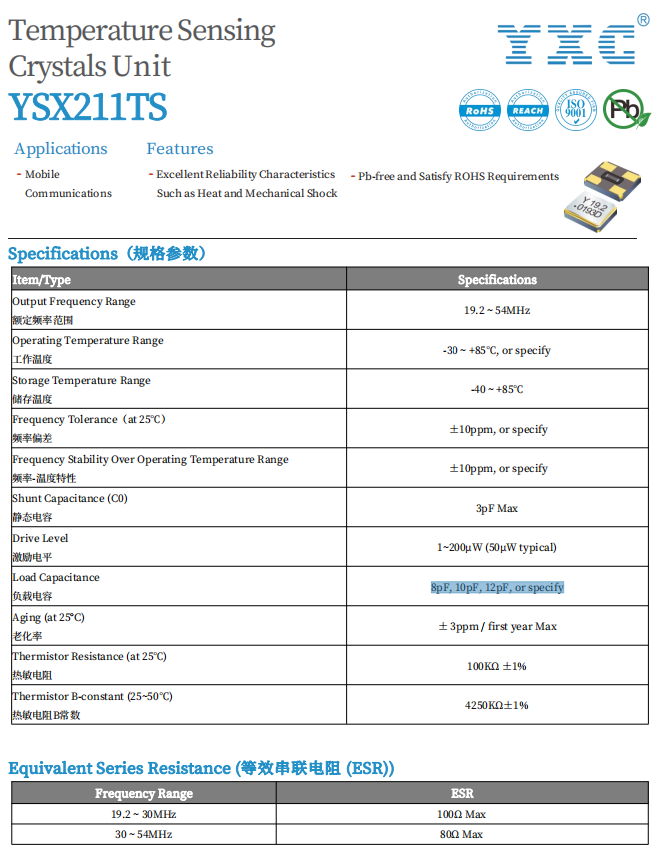

YSX211TS

Output Frequency Range 19.2 ~ 54MHz

Operating Temperature Range -30 ~ +85℃, or specify

Frequency Tolerance（at 25℃） ±10ppm, or specify

Shunt Capacitance (C0) 3pF Max

Load Capacitance 8pF, 10pF, 12pF, or specify

Datasheet Contact Us

Parameter Table

Sample

Company Name

Name

Frequency

Dimensions

Load Capacitance

Frequency Tolerance

Submit

Frequency : 19.2 ~ 54MHz

Dimension : 2.0x1.6x0.7mm

Load Capacitance : 8pF, 10pF, 12pF, or specify

Operating Temp : -30℃~+85℃

Frequency Tolerance : ±10ppm
