Crystals
*Micro resonator
*Package: 2.0x1.6mm
*SMD metal package
*±10ppm @25℃
*Operating temperature: -40~+85℃
*High frequency stability and reliability
| Item / Type | YSX211SL |
| Nominal Frequency Range | 16 to 54 MHz or 96MHz |

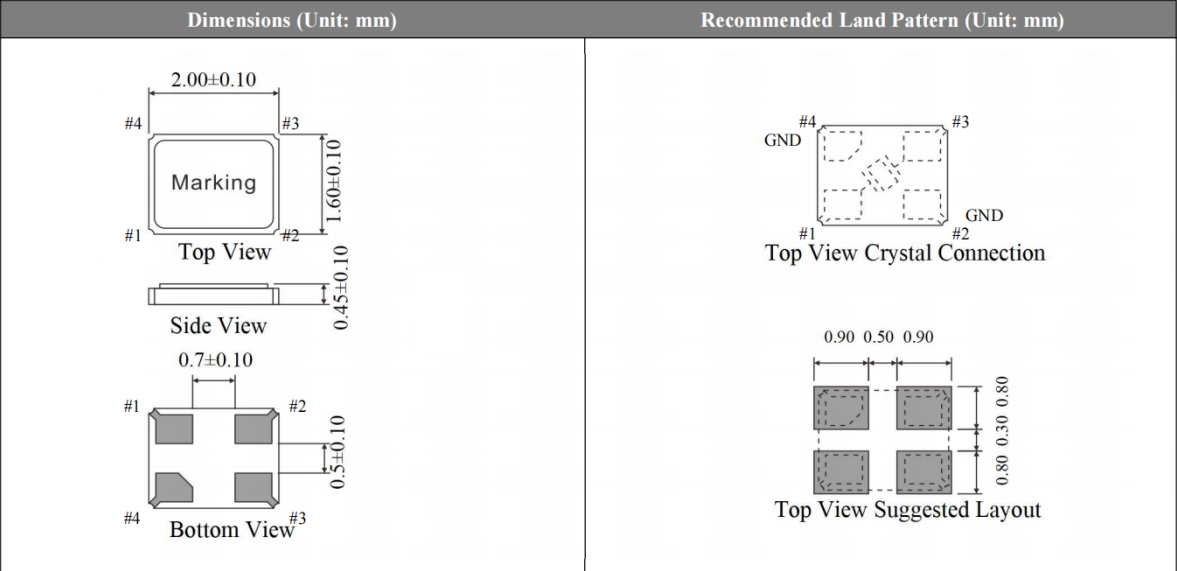

| Dimensions | 2.0 x 1.6 x 0.5 mm |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 8pF, 9pF, 12pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10ppm, ± 20ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 20 ppm, or specify |
| Operating Temperature | - 40 ~ + 85 ℃, or specify |
| Storage Temperature | -55 ~ +125 ℃, or specify |
| Shunt Capacitance | 3 pF Max. |
| Level of Drive | 10-200 μW Max (100μW typical) |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
| Quartz Crystal Resonator |
Dimensions (mm) |
Frequency (Hz) |
Load Capacitance (pF) |
Stability (ppm) |
Pin | Material | Operating Temp |
| X | 2.0 x 1.6 | 12M | O | B | 4 | S | C |
| Fundamental | |
| 16 to 30 MHz | 100Ω Max. |
| 31 to 54 MHz | 80Ω Max. |
Frequency : 16MHz-54MHz
Dimension : 2.0 x 1.6 x 0.5 mm
Load Capacitance : 8pF, 9pF, 10pF, 12pF
Operating Temp :
Frequency Tolerance : ±10ppm ±20ppm
