*1~200MHz frequency can be programmed
*2 seconds fast sample, 24h~48h batch delivery
*Multiple voltage options (1.8V, 2.5V, 3.3V)
*CMOS output
*Package: 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm, 5.0x3.2mm, 7.0x5.0mm
| Parameter | 1.8V | 2.5V | 3.3V |
| Frequency Range | 1MHz to 125MHz | 1MHz to 200MHz | 1MHz to 200MHz |
| Supply Voltage Variation (Vdd)10% | 1.62 V to 1.98 V | 2.25 V to 2.75 V | 2.97 V to 3.63 V |
| Standby Current | 400μA | ||
| Frequency Tolerance | ± 20 ppm, ± 25 ppm, ± 50 ppm, or specify | ||
| Output Load | 15pF | ||
| Operating Temperature Range | - 40 ~ + 85 ℃, or specify | ||
| Storage Temperature Range | -55 ~ +150 ℃ | ||
| Voltage Vol ( Max. ) / Vol ( Min. ) | VOH = 90%Vdd / VOL = 10%Vdd | ||
| Duty Cycle | 45~ 55% | ||
| Period Jitter (@12K-20MHz) | 1.8V=1.5ps 2.5V=1.1ps 3.3V=1ps | ||
| Start-up Time | 7ms Max. | ||
| Frequency Aging ( at 25 ℃ ) | ± 3 ppm / year Max | ||
| Oscillator | Series | Dimensions (mm) |
Frequency (Hz) |
Voltage (V) |
Stability (ppm) |
Output | Pin | Material | Operating Temp |
- | Remark |
| O | 9 | 7.5 x 5.0 | 200M | E | D | A | 4 | S | I | - | * |
| Pin | Symbol | Functionality | |
| 1 |
OE/ST/NC | Output Enable |
H : specified frequency output
L : output is low. Specified frequency output stop
|
| Standby |
H : specified frequency output
L: output is low. Device goes to sleep mode. Supply current reduces to 400uA (Standby Current).
|
||
| No Connect | Pin 1 = VDD or Pin 1 is Open : Specified frequency output. Pin 1 has no function | ||
| 2 | GND | Power | Electrical ground |
| 3 | OUT | Output | Oscillator output |
| 4 | VDD | Power | Power supply voltage |
Voltage : 1.8V, 2.5V, 3.3V
Frequency : 1MHz-200MHz

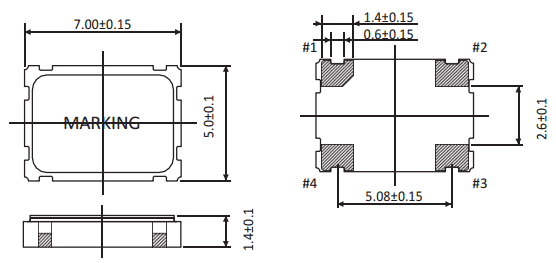

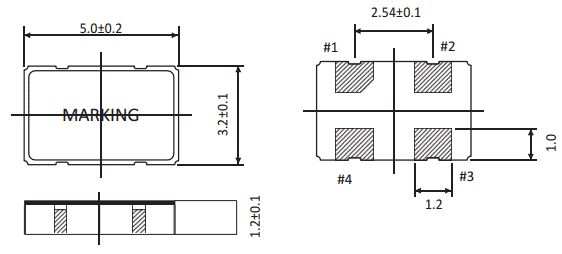

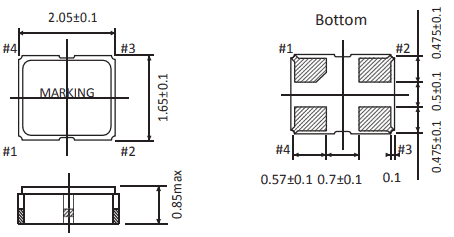

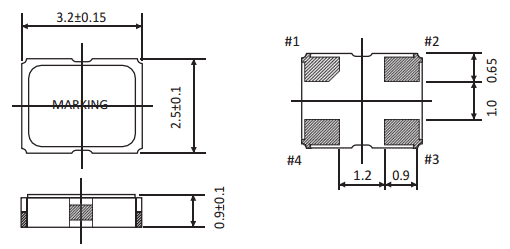

Dimension : 2.0 x 1.6 x 0.85 mm 2.5 x 2.0 x 0.8 mm 3.2 x 2.5 x 0.9 mm 5.0 x 3.2 x 1.2 mm 7.0 x 5.0 x 1.4 mm
Operating Temp :
Frequency Tolerance : ±20ppm ±25ppm ±50ppm
Output : CMOS
