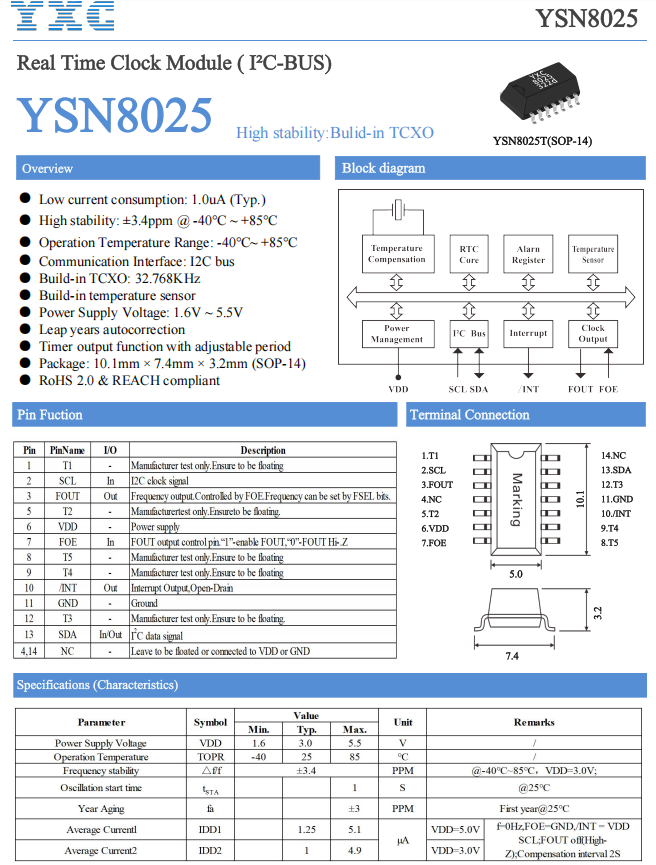

YSN8025 is a high-precision, low-power I2C bus interface real-time clock. It has a built-in 32.768KHz temperature-compensated crystal oscillator. It is equipped with a high-precision temperature sensor and temperature compensation circuit to ensure the high clock accuracy of the product. It supports calendar (year, month, day, hour, minute, second), clock and timer functions, etc. These features make it very suitable for energy, power equipment and high-speed railway system applications.
(PS: Brief datasheet only. Contact us for full specifications. )
Voltage : 1.6~5.5V
Frequency : 32.768KHz
Dimension : 10.1x7.4x3.2mm (SOP14)
Operating Temp :
Frequency Tolerance : ±3.4ppm
Output :
Series :
Package :
Output Freq :
Output Type :
Output Qty :
Input Type :
Temp :
Jitter :
Insertion Loss :
