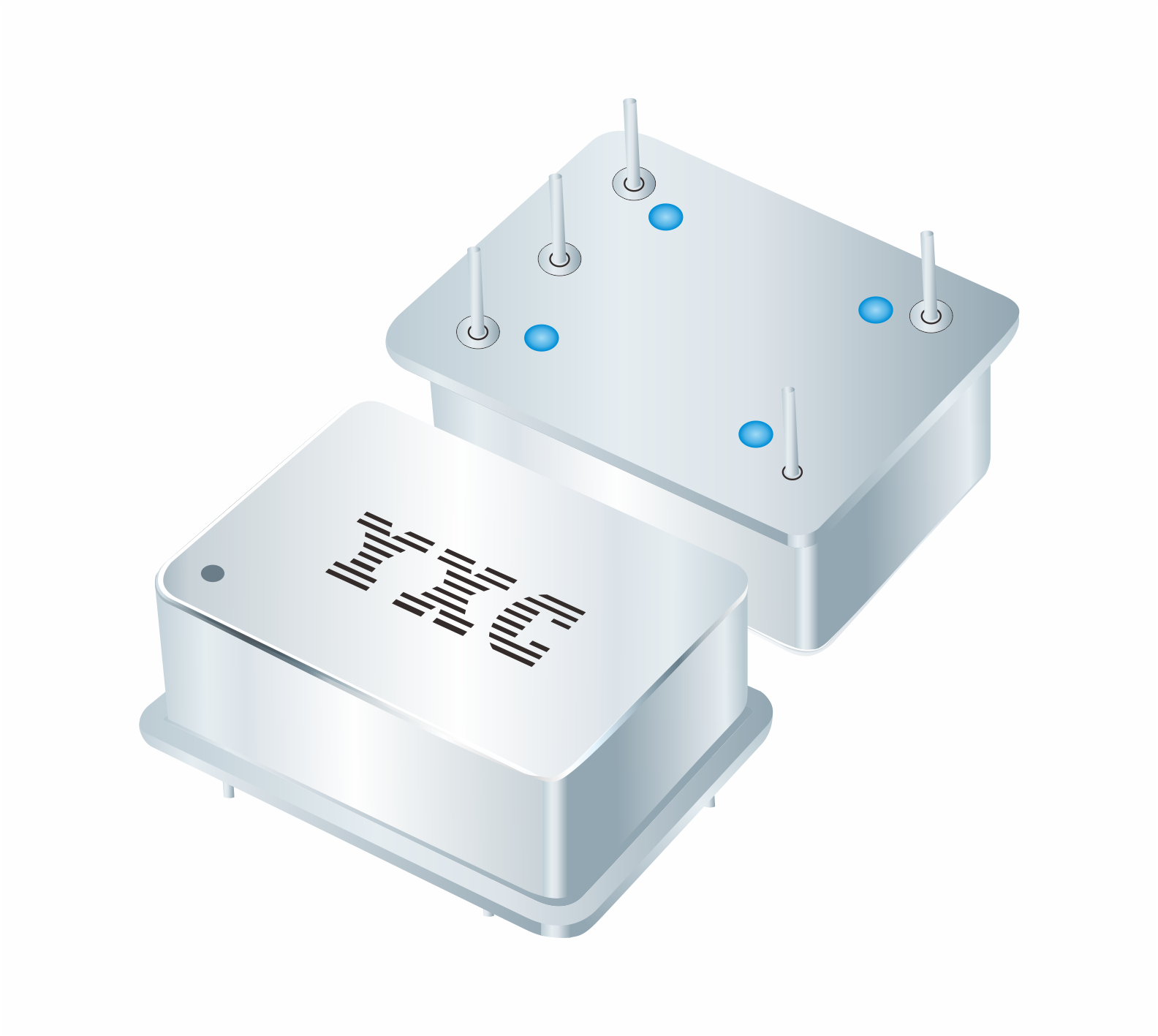

YOV3627DP

* Small Size, High Stability
* Temperature stability ≤±1E-10 (-40℃~+70℃)
* Sort-Term stability ≤1.5E-13@1s
*  Aging≤ ± 1E-10/day

Datasheet Contact Us
Parameter Table
Sample
Specifications :
Specification Value
Frequency Range 5~120 MHz
Supply Voltage 3.3 V / 5 V / 12 V
Temperature Stability ≤ ±0.1 ppb (best achievable, +40°C to +70°C)
Operating Temperature −40°C ~ +70°C
Output Type Sine Wave / HCMOS
Short-Term Stability ≤ 8 × 10⁻¹² @ 1 s
Phase Noise @ 1 kHz −158 dBc/Hz min. (10 MHz)
Package Size 36 × 27 × 12.7 mm


Features:
♦  Ultra-high temperature stability as tight as ±0.1 ppb over +40°C to +70°C.

♦   Wide frequency range from 5 MHz to 120 MHz.

♦   Low phase noise of −158 dBc/Hz at 1 kHz offset (10 MHz).

♦   Short-term stability of ≤ 8 × 10⁻¹² at 1 second.

♦   Low aging rate of ≤ 0.1 ppb/day.

♦   Sine wave and HCMOS output options.

♦   Supply voltage options of 3.3 V, 5 V, and 12 V.

♦   Warm-up time of less than 5 minutes.

♦   Compact 36 × 27 × 12.7 mm package.


Applications:

♦   Routers

♦   Switching Equipment

Submit

Voltage : 3.3V, 5V, 12V

Frequency : 5~120MHz

Dimension : 36x27.2x12.7

Operating Temp : -40~+70℃

Frequency Tolerance : ≤±0.1ppb@-40~+70℃

Output : Sine Wave / HCMOS
