Crystals
Hot-Sale Frequencies: 16MHz, 24MHz, 25MHz
RoHS Status: Compliant
PN: X1E000021012700, X1E000021016300
Applications: Mobile phone, Bluetooth, W-LAN
ISM band radio, Clock for MPU
| Item | Symbol | For RF Reference | Condition/Remarks |
| Nominal frequency range | f_nom | 16.000MHz to 48.000MHz | Fundamental For the out of standard specifications, please contact us for inquiries. |
| Storage temperature | T_stg | -40°C to +125°C | Store as bare product. |
| Operating temperature | T_use | -40°C to +85°C (+105 °C) | Please contact us about +85 °C < T_use |
| Level of drive | DL | 200µW Max. | Recommended: 1 to 100µW |
| Frequency tolerance | f_tol | ±10 × 10-6 | +25°C For the out of standard specifications, please contact us for inquiries. |
| Frequency versus temperature characteristics | f_tem | ±10 × 10-6/-20°C to +75°C | For the out of standard specifications, please contact us for inquiries. |
| Load capacitance | CL | 7pF to ∞ | For the out of standard specifications, please contact us for inquiries. |
| Motional resistance (ESR) | R1 | As per below table | -40°C to +8 °C, DL = 100µW |
| Frequency aging | f_age | ±1 × 10-6 / year Max. *1 | +25°C, First year |
| Frequency | Motional resistance |
| 16.0MHz ≤ f_nom < 21.0MHz | 60Ω Max. |
| 21.0MHz ≤ f_nom ≤ 48.0MHz | 40Ω Max. |

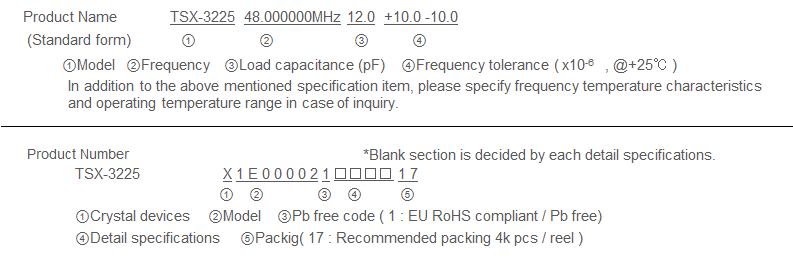

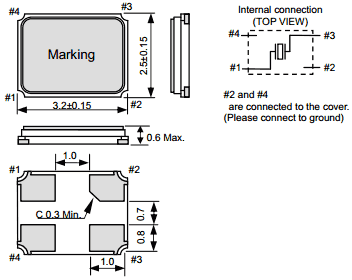

External Dimensions
(Unit: mm)
Footprint (Recommended)
Frequency : 16MHz-48MHz
Dimension : 3.2 x 2.5 mm
Load Capacitance : Specify
Operating Temp :
Frequency Tolerance : ±10ppm ±15ppm
