Small Size Crystal
32.768KHz Passive Crystal Oscillator
ROHS STATUS: Compliant
Applications：Small communications devices
|
Item
|
Symbol
|
Specifications
|
Condition/Remarks
|
|
Nominal frequency range
|
f_nom
|
32.768KHz
|
|
|
Storage temperature
|
T_stg
|
-55°C to +125°C
|
Store as bare product.
|
|
Operating temperature
|
T_use
|
-40°C to +85°C
|
|
|
Level of drive
|
DL
|
0.1µW Typ.
(0.5µW Max.) |
|
|
Frequency tolerance (standard)
|
f_tol
|
± 20 × 10-6
|
+25°C, DL=0.1µW
|
|
Turnover temperature
|
Ti
|
+25°C ±5°C
|
|
|
Parabolic coefficient
|
B
|
-0.04 × 10-6/ °C2 Max.
|
|
|
Load capacitance
|
CL
|
9pF, 12.5pF
|
Please specify
|
|
Motional resistance (ESR)
|
R1
|
90kΩ Max.
|
|
|
Motional capacitance
|
C1
|
6.0fF Typ.
|
|
|
Shunt capacitance
|
C0
|
1.2pF Typ.
|
|
|
Frequency aging
|
f_age
|
±3 ×10-6 / year Max.
|
+25°C, First year
|

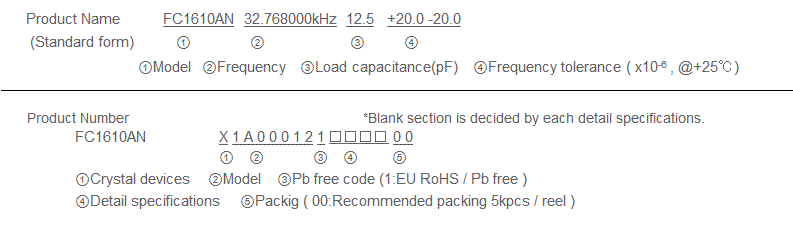

Frequency : 32.768KHz

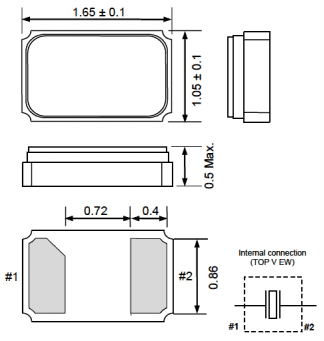

Dimension : 1.6 x 1.0 mm
Load Capacitance : 9pF, 12.5pF
Operating Temp :
Frequency Tolerance : ±20ppm
