FC-12M

Epson Crystal Unit

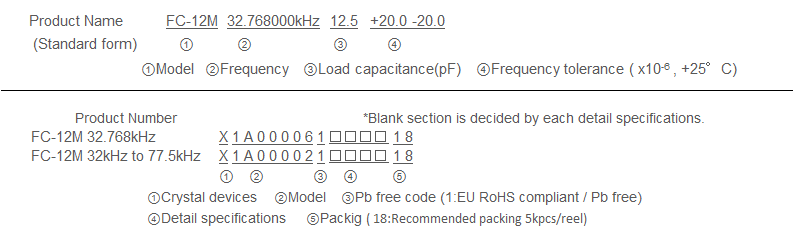

PN: X1A000061000200, X1A000061000600

PN: FC-12M 32.7680KA-A3, FC-12M 32.7680KA-AC3

Applications: Small card, small devices

Datasheet Contact Us

Parameter Table

Sample

Item	Symbol	Specifications		Condition/Remarks
Item	Symbol	FC-12M	FC-12M TYPE	Condition/Remarks
Nominal frequency range	f_nom	32.768kHz	32kHz to 77.5kHz	Please contact us for inquiries regarding available frequency.
Storage temperature	T_stg	-55 °C to +125 °C		Store as bare product
Operating temperature	T_use	-40 °C to +85 °C
Level of drive	DL	0.5 µW Max.
Frequency tolerance (standard)	f_tol	±20 × 10^-6 ±30 × 10^-6		+25 °C,DL=0.1 µW Please ask for tighter tolerance
Turnover temperature	Ti	+25 °C±5 °C
Parabolic coefficient	B	-0.04 × 10^-8/ °C² Max
Load capacitance	CL	12.5pF		Please contact us except 12.5pF
Motional resistance (ESR)	R1	90 kΩ Max.	90 kΩ to 65kΩ
Motional capacitance	C1	6.4 fF Typ.	7.0 fF to 2.7fF
Shunt capacitance	C0	1.3 pF Typ.	1.6 pF to 0.8pF
Frequency aging	f_age	±3 ×10^-6 / year Max		+25 °C, First year

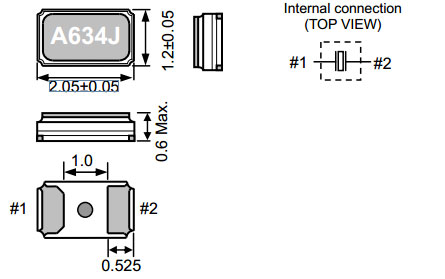

External Dmensions

(Unit: mm)

Footprint (Recommended)

*Do not design any circuit patterns in the shaded area.
(Unit: mm)

Company Name

Name

Frequency

Dimensions

Load Capacitance

Frequency Tolerance

Submit

Frequency : 32.768KHz

Dimension : 2.0 x 1.2 mm

Load Capacitance : 12.5pF

Operating Temp : -40℃~+85℃

Frequency Tolerance : ±10ppm ±20ppm
