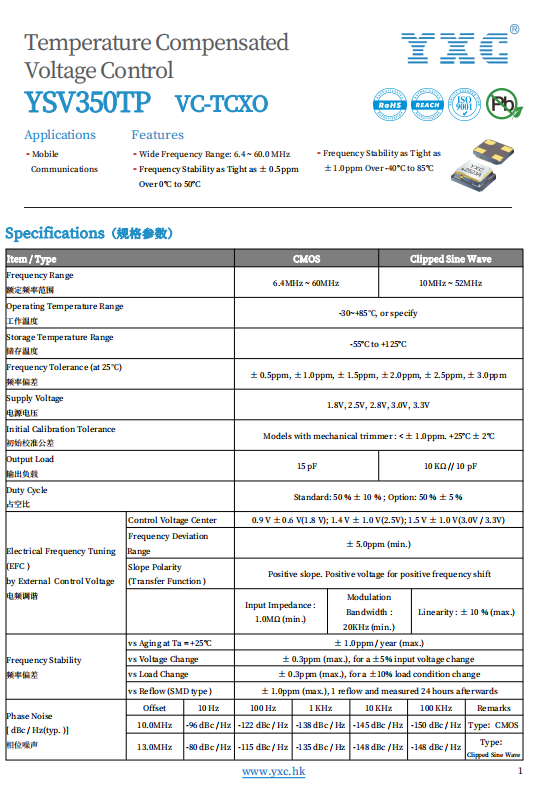

YSV350TP

*High-precision voltage-controlled temperature-compensated crystal oscillator
*Frequency range: 6.4~60MHz
*Multiple voltage options (1.8V, 2.5V, 3V, 3.3V)
*Temperature stability: ±0.5ppm @-30~+85℃ (min)
*Output mode: CMOS, Clipped Sine Wave
*Voltage control
*Packaging: 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm, 5.0x3.2mm, 7.0x5.0mm

Datasheet Contact Us

Parameter Table

Sample

Company Name

Name

Frequency

Dimensions

Voltage

Frequency Tolerance

Submit

Voltage : 1.8/ 2.5/ 3/ 3.3V

Frequency : 6~52MHz

Dimension : 3.2x2.5 5.0x3.2 7.0x5.0

Operating Temp : -40℃~+85℃

Frequency Tolerance : ±0.5ppm ±1.5ppm ±2.5ppm

Output : LVPECL LVDS
