Clock Chip

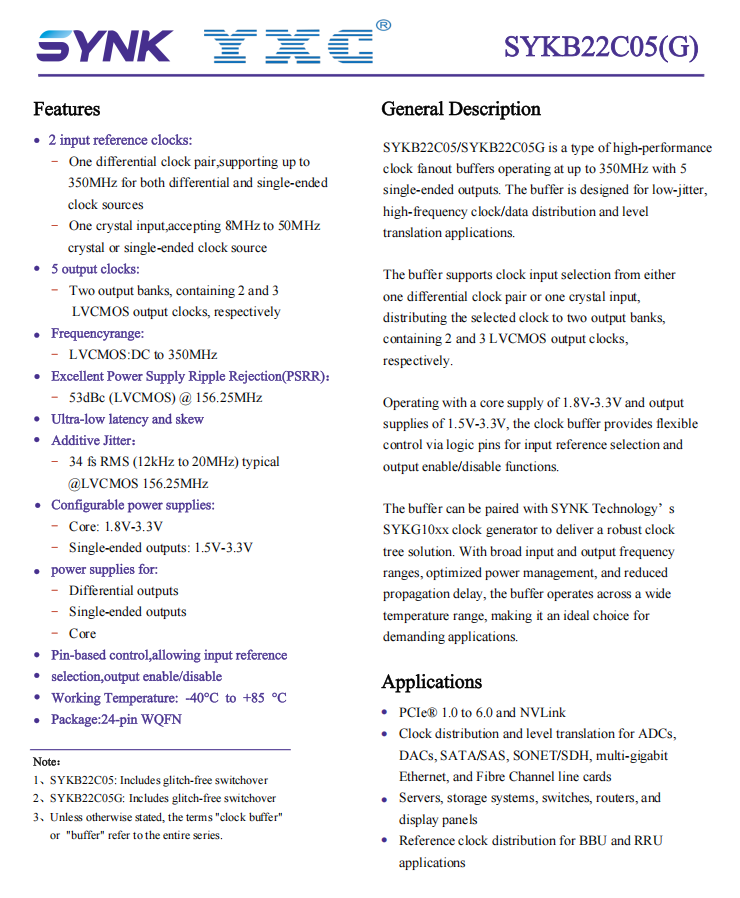

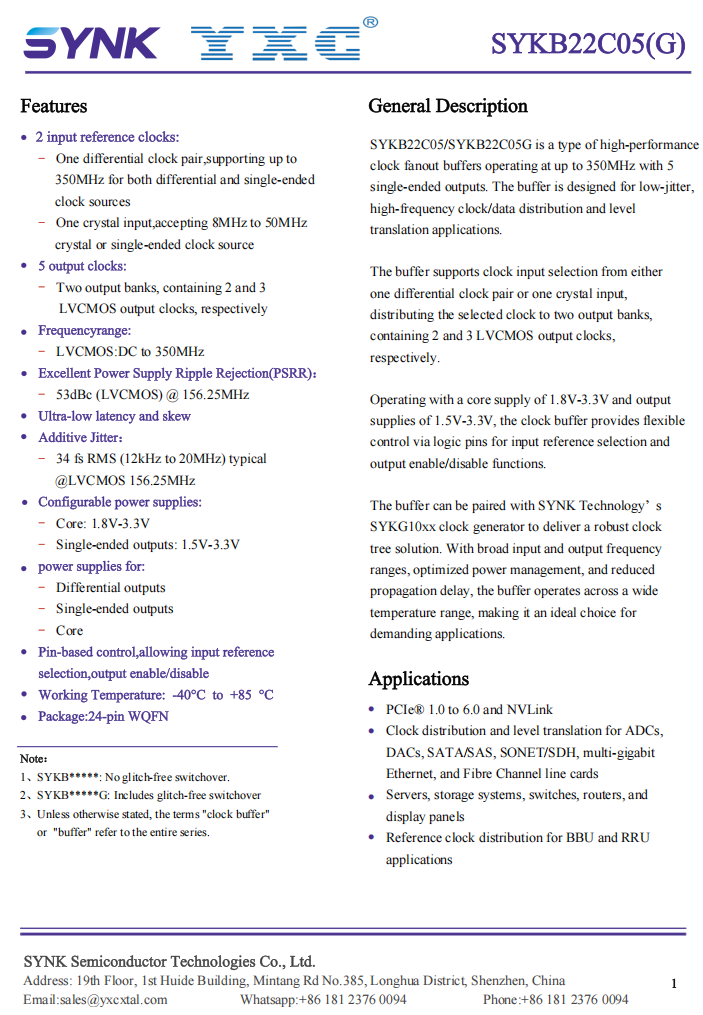

The SYKB22C05 is a 5-channel single-ended clock fan-out buffer with ultra-low jitter, designed for high-frequency, low-jitter clock distribution and level shifting. It supports one pair of differential clock inputs or one crystal input, with 2 and 3 LVCMOS clock outputs respectively. Flexible selection and dynamic switching allow it to meet the multi-clock domain requirements of complex systems.
Voltage : 1.8V~3.3V
Frequency : DC~350MHz
Dimension : 4.0x4.0x0.75
Operating Temp :
Frequency Tolerance :
Output : LVCMOS
