SYKB23F10

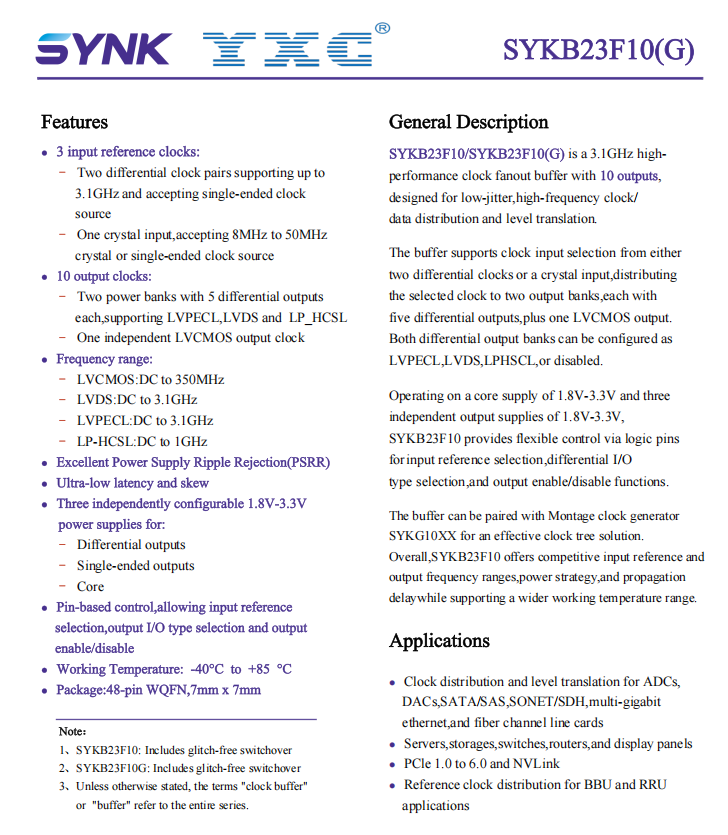

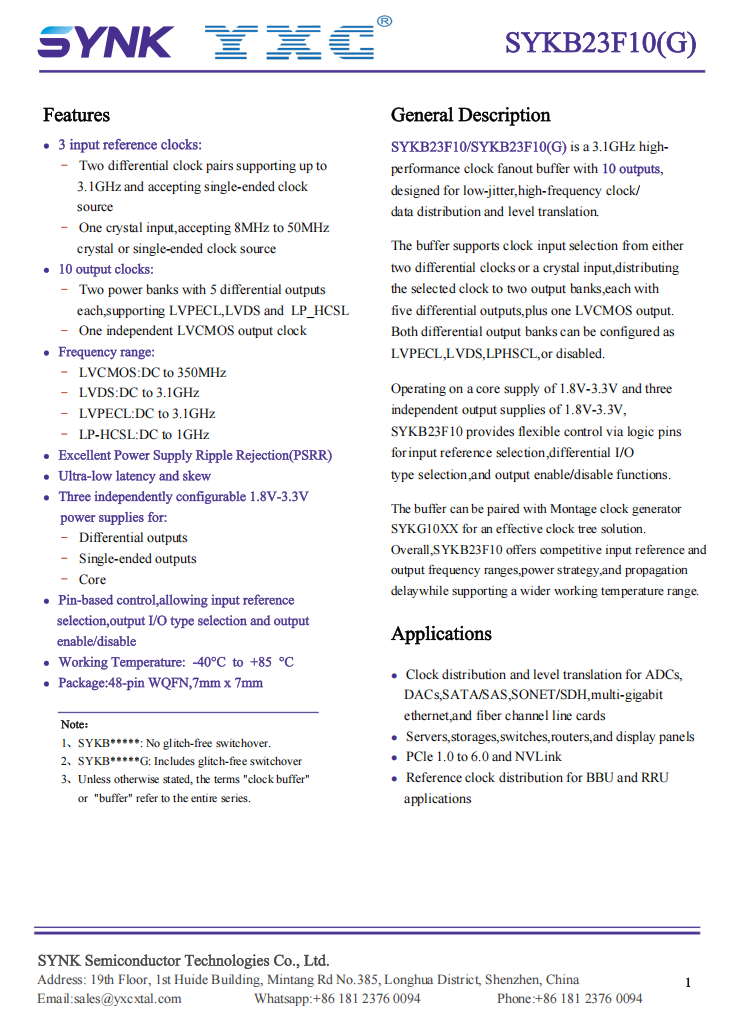

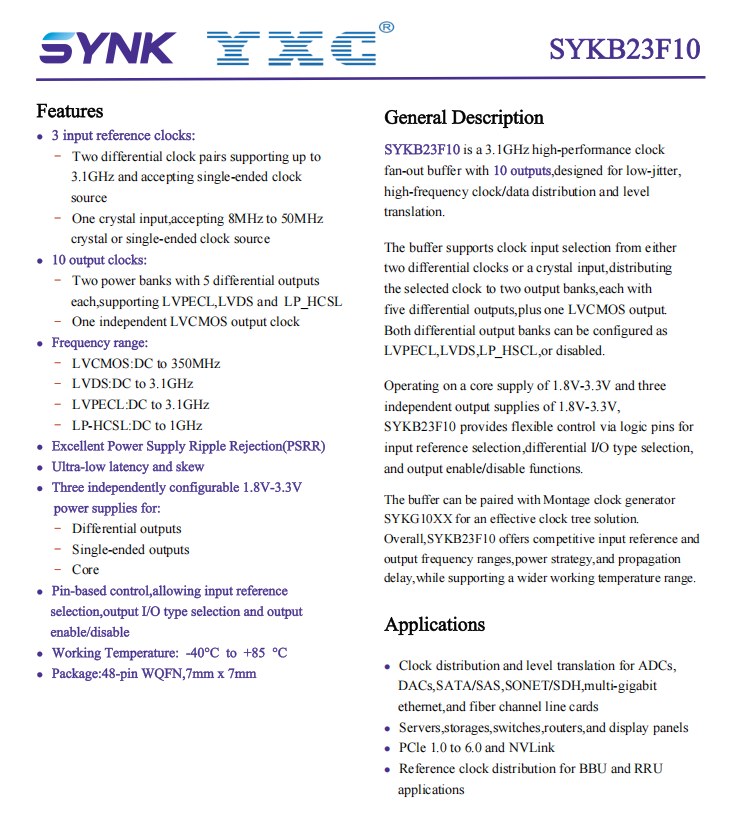

The SYKB23F10 is a multi-output, ultra-low additive jitter differential clock buffer designed for high-frequency, low-jitter clock distribution and level translation. It supports three input clock sources (two pairs of differential clock inputs and one crystal input), with flexible selection and dynamic switching. It also provides 10 clock outputs (two groups of five differential output pairs + one independent LVCMOS output), meeting the needs of complex systems with multiple clock domains.

Datasheet Contact Us
Parameter Table
Sample
Submit

Voltage : 1.8V~3.3V

Frequency : DC~3.1GHz

Dimension :

Operating Temp : -40℃~+85℃

Frequency Tolerance :

Output : (1) LPHCSL: DC~1GHz (2) LVPECL/LVDS: DC~3.1GHz (3) LVCMOS: DC~350MHz
