Yangxing Technology's TCXO/OCXO clock solutions enable high-precision synchronization of 5G base stations.

As 5G networks transition from large-scale deployment to precision performance enhancement, base station systems now demand significantly higher frequency accuracy, time synchronization stability, and long-term operational reliability from reference clock sources. Crystal oscillators have become critical foundational components determining the performance limits of 5G networks. Leveraging decades of expertise in clock frequency devices, YXC Yangxing Technology has developed a comprehensive 5G base station clock solution encompassing both TCXO and OCXO series technologies.

I. Core Clock Performance Requirements for 5G Base Stations

1. Requirements for frequency stability under high-frequency bands and high-order modulation

5G networks extensively utilize mid-to-high frequency bands and adopt advanced modulation techniques like 256QAM, which significantly enhance data rates and capacity while also making the system more sensitive to short-term stability of local oscillator frequencies and phase noise.

Minor frequency shifts will directly affect:

• Modulation accuracy (EVM)

• Demodulation bit error rate (BER)

• System Capacity and Edge Performance

Therefore, reference clocks at all levels within 5G base stations must exhibit high stability and low noise output characteristics.

2. Time Synchronization Requirements for TDD and Cooperative Communication

In 5G TDD networks, time synchronization errors between base stations must be strictly controlled within an extremely narrow range to prevent uplink and downlink signal interference. Meanwhile, technologies such as CoMP, carrier aggregation, and multi-base station collaborative communication require multiple base stations to maintain high synchronization across both time and frequency dimensions, further increasing the demand for system clock synchronization precision.

3. Requirements for clock reliability under long-term operation and complex environments

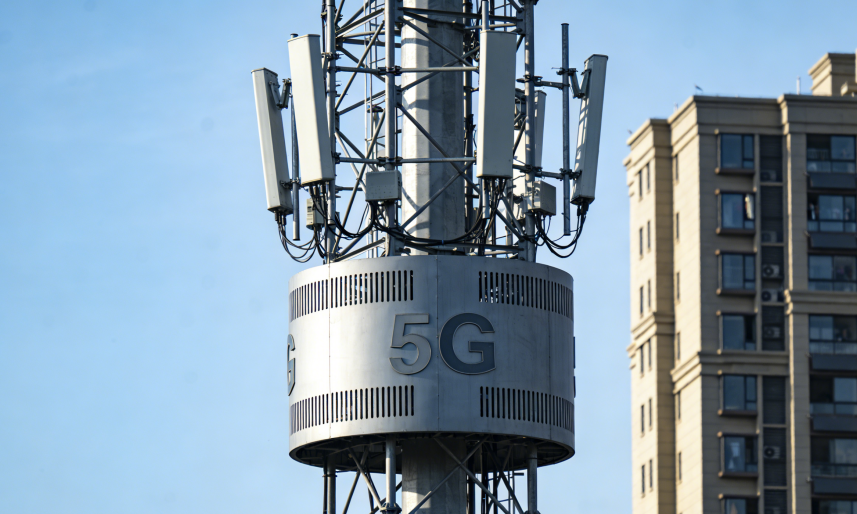

5G base stations are typically deployed in outdoor or complex data center environments, requiring crystal oscillators to maintain stable operation over extended periods within the temperature range of-40°C to +85°C, while demonstrating excellent aging characteristics and consistent performance.

II. Application of YXC Temperature-Tuned Crystal Oscillator YSO510TP Series in 5G Base Stations

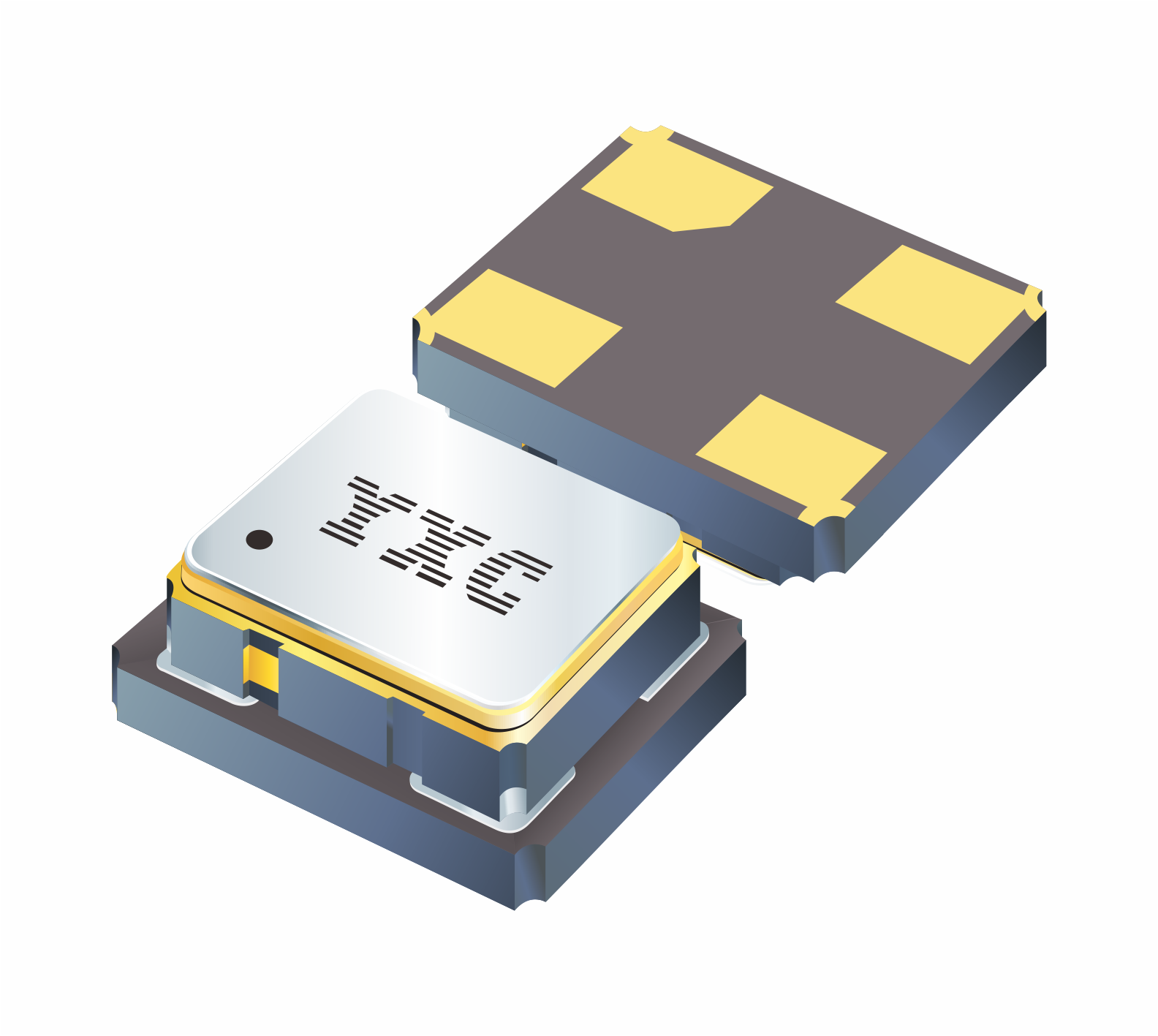

The YSO510TP series is a medium-to-high-performance temperature-compensated crystal oscillator developed by YXC Yangxing Technology for communication systems. Featuring advanced temperature compensation algorithms, it delivers exceptional frequency stability, making it ideal for use as a local reference clock and RF reference source in 5G base stations.

• Parameter Introduction of YSO510TP Series Temperature-Tolerant Crystal Oscillator

Note: A temperature stability of ±0.05 ppm represents a high-performance class for TCXO products, effectively minimizing the impact of temperature variations on system frequency.

2. Typical Applications in 5G Base Stations

• Baseband Processing Unit (BBU)

• Radio Frequency Unit (RRU/AAU)

• Small cell and microcell system

• Clock distribution and auxiliary synchronization module

III. Application of YXC Temperature-Stable Crystal Oscillator YOV2525DP Series in 5G Base Stations

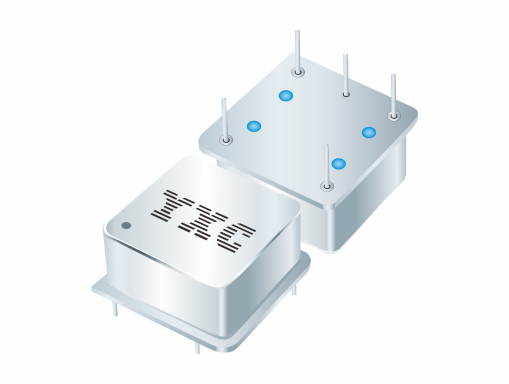

The YOV2525DP series constant temperature crystal oscillator from YXC Yangxing Technology delivers ppb-level temperature stability, ultra-low phase noise and jitter, along with exceptional holdover performance, making it the ideal choice for high-precision synchronization systems.

1. Parameter Introduction of YOV2525DP Series Temperature-Stabilized Crystal Oscillator

2. Typical Applications in 5G Base Stations

• Primary Reference Clock (PRC)

• GNSS clock synchronization module

• Synchronization and Timekeeping Unit

• Core network clock system

IV. Hierarchical Collaborative Application Architecture for TCXO and OCXO

In 5G base station system design, TCXO and OCXO typically adopt a hierarchical configuration architecture with coordinated operation.
Key advantages of YXC Yangxing Technology's solution:

• Covers the complete 5G base station clock product system integrating TCXO and OCXO technologies

• Stability and noise performance optimized for communication systems

• Mature product consistency suitable for large-scale deployment

• Support for frequency point, packaging, and performance level customization

For sample requests, detailed information, product inquiries, or technical consultations, please feel free to contact Xiao Yang directly.
