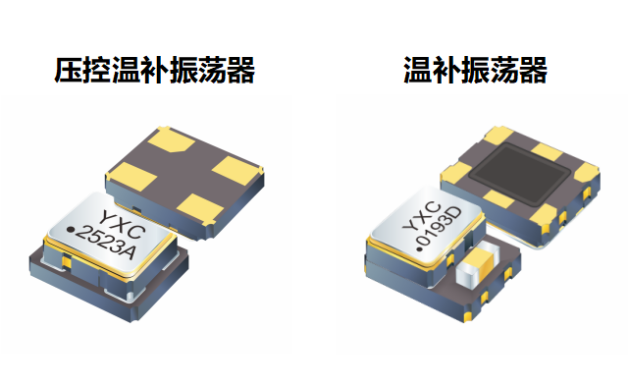

A voltage-controlled temperature-compensated crystal oscillator (VC-TCXO) can be used as an alternative to a temperature-compensated crystal oscillator (TCXO) in some cases, but the decision depends on specific application requirements. The following is an analysis of key factors:
Operating Principle: A TCXO automatically adjusts its frequency using a temperature sensor and compensation circuit to minimize the effects of temperature fluctuations. A VC-TCXO adds voltage control to the TCXO, allowing fine-tuning of the frequency using an external voltage signal.
Performance Characteristics: Frequency Control Capability: A TCXO primarily relies on its internal compensation circuit for frequency adjustment, resulting in a limited adjustment range. A VC-TCXO, with its voltage control function, allows for a wider frequency adjustment range.
Stability and Accuracy: A TCXO offers high frequency stability, typically within ±0.5 ppm. A VC-TCXO offers even higher frequency stability and accuracy, reaching ±0.1 ppm.
Application Complexity: A TCXO has a simple structure and is suitable for applications that do not require external frequency adjustment. A VC-TCXO, however, has a complex structure and requires an external circuit to provide a control voltage, making it suitable for applications requiring precise frequency control.
Replacement Considerations
Frequency Adjustment Required: If the application requires fine-tuning the frequency via an external voltage, a VC-TCXO should be selected; otherwise, a TCXO is more suitable.
Stability Requirement: For applications requiring high frequency stability and accuracy, a VC-TCXO is more suitable.
Circuit Complexity: A VC-TCXO requires additional control circuitry, increasing design complexity and cost.
In summary, if the application requires external frequency adjustment or higher accuracy, a VC-TCXO can replace a TCXO; otherwise, a TCXO is more suitable.
