During the 2026 Year of the Horse Spring Festival Gala's' Wu BOT 'segment, the robot delivered a breathtaking performance of Chinese martial arts, with fluid movements that left the audience in awe. An engineer from Yushu Technology explained:' Every robot movement must be executed with precision down to the hundredth of a second, much like humans dancing to a beat, synchronizing their actions with the timekeeping rhythm.'
With the rapid development of Industry 4.0 and humanoid robots, robot motion control systems are continuously upgrading from basic motion realization to higher precision, stronger synchronization, and greater stability. Temperature-coupled crystal oscillator (TCXO) can significantly enhance the multi-joint coordination, high-speed servo response, and millimeter-level positioning capabilities of robots, thereby advancing the performance of robotic motion systems.
The Demand of Robot Motion Control System for Crystal Oscillator Continues to Increase
1. High precision and clock synchronization
High-precision clock signals form the foundation of robotic motion control, ensuring precise synchronization of motor drives and multi-axis robotic arms. TCXO achieves ultra-high frequency accuracy through advanced temperature compensation technology, reducing timing errors in motion control systems to nanosecond-level precision, thereby enabling robots to achieve millimeter-level or even higher positioning accuracy.
2. High stability and anti-interference capability
In complex environments with extreme temperatures, vibrations, and electromagnetic interference, crystal oscillators must demonstrate exceptional wide-temperature adaptability and robust anti-interference/vibration performance. TCXO (Tunable Crystal Oscillator) delivers more stable clock signals to suppress frequency shifts, withstand mechanical stress, and ensure long-term system stability.
3. Miniaturization and Low Power Consumption
The miniaturized packaging is adopted to accommodate the compact internal structure of the robot, facilitating integration. The low-power design enhances battery endurance and reduces overall energy consumption, meeting the requirements for lightweight and energy-efficient operation of the robot.
In summary, the demand for crystal oscillators in robotic motion control systems continues to rise, with a focus on trends such as higher precision, greater stability, miniaturization, and lower power consumption to ensure accurate and smooth robotic movements. Thanks to its outstanding overall performance, TCXO has become one of the preferred clock solutions for robotic motion control systems.
YXC provides a TCXO selection guide for robotic motion control systems to help you upgrade your product design

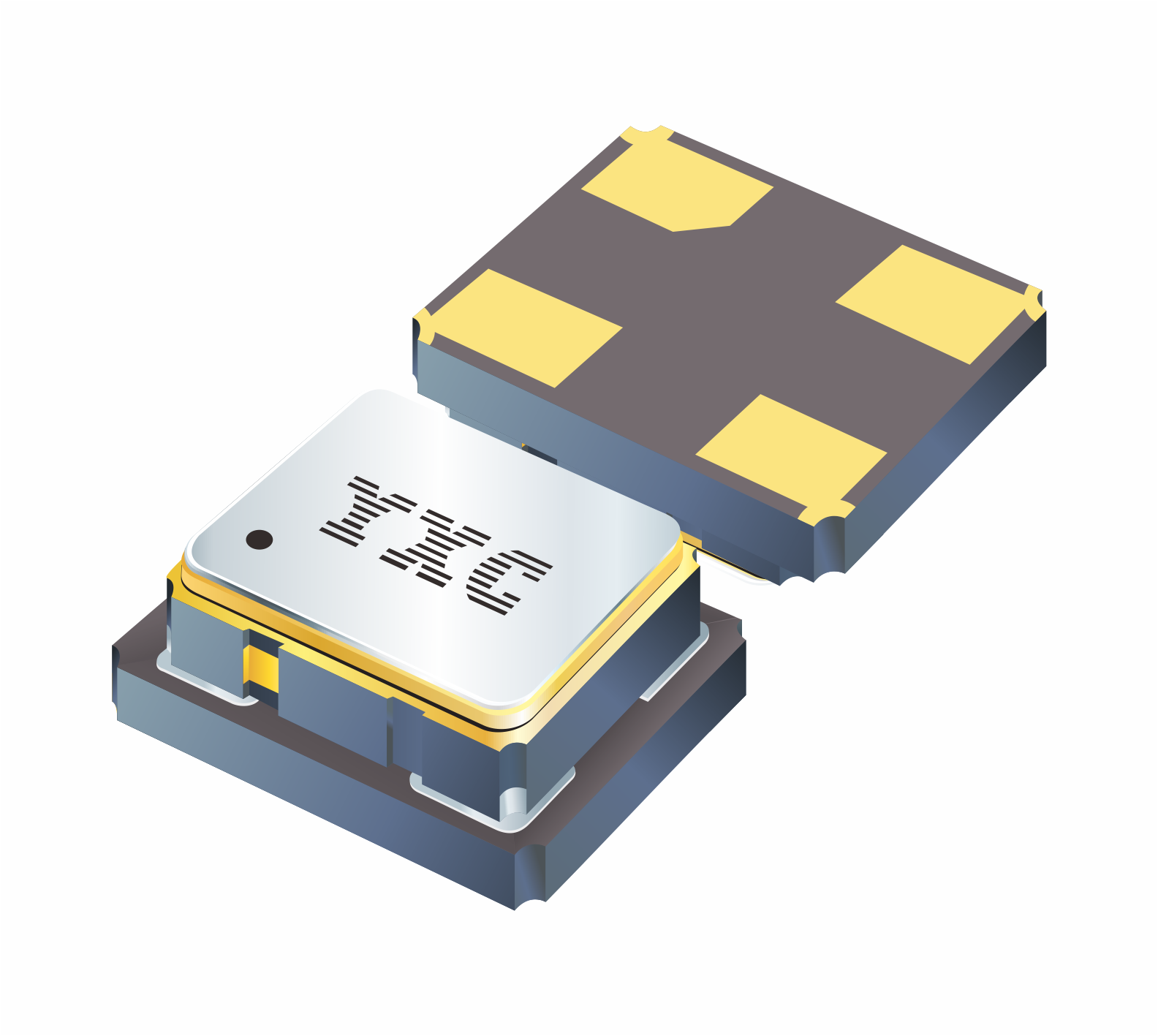

High Precision and High Stability TCX0: YSO510TP Series
YSO510TP series

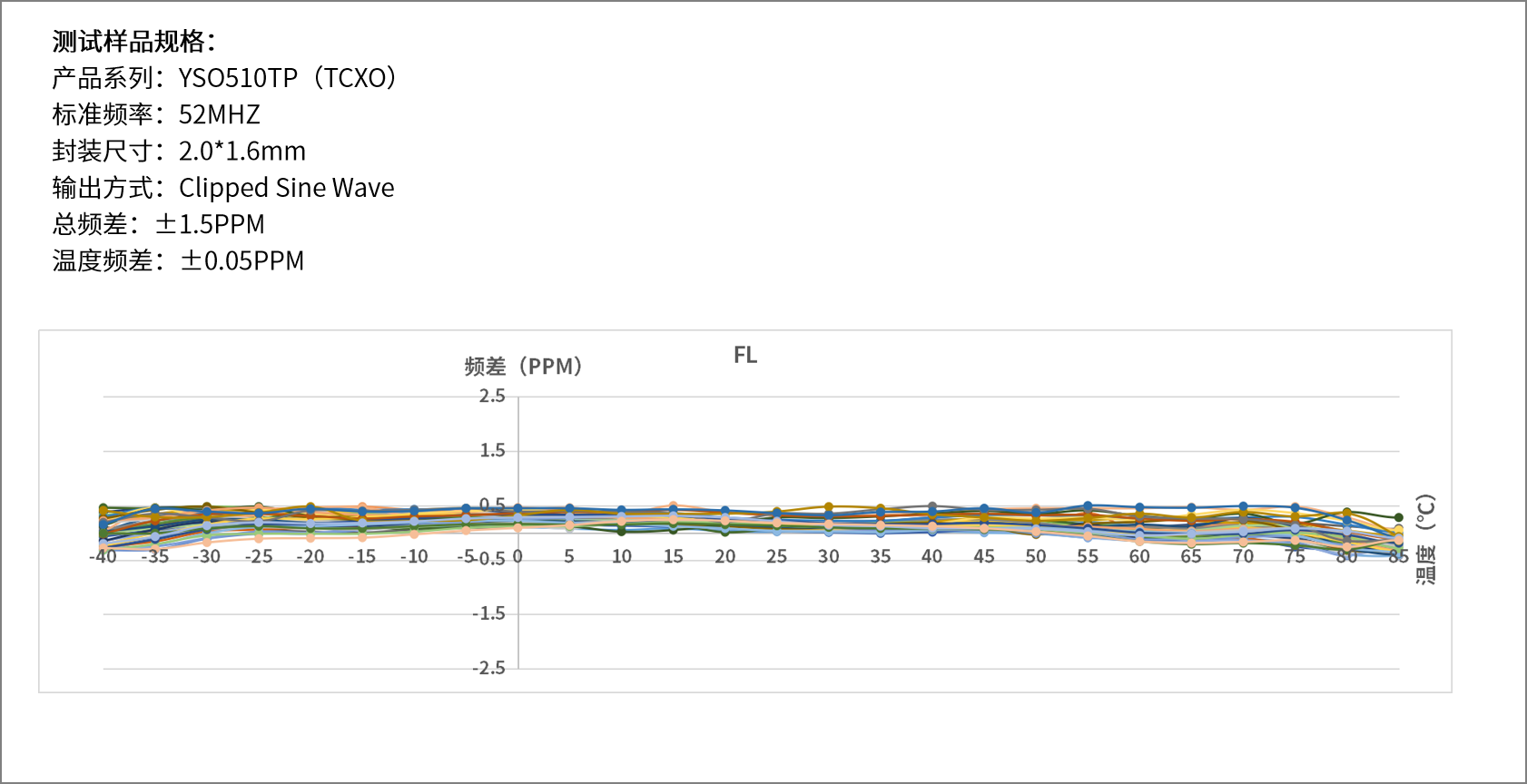

The YSO510TP is a high-precision, high-stability temperature-compensated crystal oscillator developed by Yangxing Technology. With a frequency temperature deviation as low as ±0.28 PPM (typical value: ±2.5 PPM) across-40 to 85°C, it effectively reduces robot movement lag, collisions, and positioning errors caused by timing deviations, enabling precise control of complex robotic maneuvers.
key parameter ：
✅ Frequency range: 10-52MHz
✅ Encapsulation dimensions: 2016-7050, with a minimum size of 2016, designed for compact robot packaging.
✅ Operating voltage: 1.8/2.5/3/3.3V
✅ Operating temperature: -40 to +85°C or specify
✅ Frequency temperature frequency difference: 0.05/±0.28/0.5/1.5/2.5 PPM

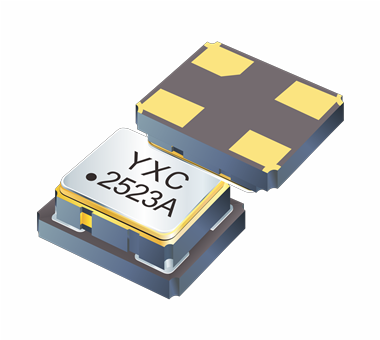

Low power, high precision, high stability VCTCXO: YSV350TP series
YSV350TP series
The YSVP350TP is a high-performance voltage-controlled temperature-compensated crystal oscillator developed by Yangxing Technology. With its outstanding low-power performance, it operates at a minimum current of just 6mA, significantly reducing power consumption in motion control systems and extending battery life.
The YSV350TP series incorporates voltage-controlled temperature compensation (VC-TC) technology, enabling real-time adjustment and compensation of oscillation frequency in response to ambient temperature fluctuations. This ensures reliable and stable clock signal output even under complex and variable robotic operating conditions, facilitating high-precision motion control for robots.
key parameter ：
✅ Frequency range: 6.4-60MHz
✅ Packaging dimensions: 2.0*1.6, 2.5*2.0, 3.2*2.5, 5.0*3.2, 7.0*5.0 mm
✅ Operating voltage: 1.8/2.5/2.8/3/3.3V
✅ Operating temperature: -30~+85℃ or specify
✅ Frequency stability: ±0.5ppm over 0℃ to 50℃ (available); ±1.0ppm over-40℃ to 85℃ (available)
✅ Phase noise: -148dBc/Hz at 10KHz offset
