In the timing architecture of electronic systems, the precision of clock signals is like the balance spring in a mechanical clock; even the slightest deviation can cause system timing disruptions. From real-time interaction between mobile communication terminals and signal synchronization in base stations to orbit calculations for navigation satellites and metrological analysis for precision instruments, even millimeter-scale frequency deviations can lead to data transmission errors, positioning offsets, and measurement inaccuracies. The temperature-compensated crystal oscillator (TCXO), a core component of high-precision clock references, utilizes a built-in temperature compensation mechanism to achieve precise frequency lock across a wide range of operating temperatures, making it the "timing anchor" for high-end electronic systems.
A TCXO is a high-precision oscillator that adds temperature compensation to a conventional active crystal oscillator. While the frequency of conventional crystal oscillators is easily affected by ambient temperature fluctuations, resulting in unstable device performance, a TCXO's built-in compensation circuit automatically adjusts the oscillation frequency to offset temperature variations, providing an extremely stable frequency signal.

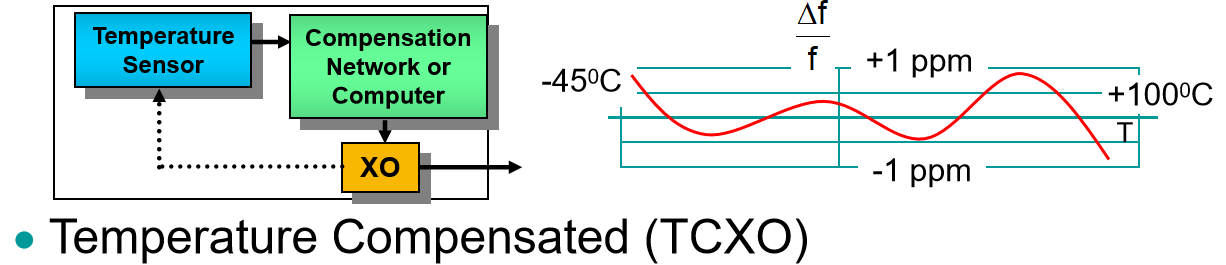

The core operating principle of a temperature-compensated crystal oscillator can be summarized as "sense-calculate-compensate":
A temperature sensor monitors the ambient temperature in real time. A compensation network or calculator calculates the required frequency compensation based on temperature changes, and the system dynamically adjusts the output frequency of the crystal oscillator.
Several key parameters of a temperature-compensated crystal oscillator:
1. Nominal frequency: The ideal output frequency of the crystal oscillator, typically expressed in megahertz (MHz), ranging from a few kHz to several hundred MHz.
2. Frequency accuracy: Frequency accuracy refers to the deviation between the actual output frequency and the nominal frequency of the temperature-compensated crystal oscillator at a reference temperature (25°C), expressed in parts per million (ppm).
3. Frequency stability: This includes temperature stability, long-term stability, and short-term stability.
Temperature stability: This is the core technological advantage of the TCXO. When the ambient temperature fluctuates drastically within the range of -40°C to +85°C, the frequency drift of an ordinary crystal oscillator can reach ±20ppm to ±100ppm. However, a TCXO, through real-time adjustment through the temperature compensation network, suppresses this drift to within ±0.1ppm to ±5ppm.
Long-term stability: Due to quartz crystal aging and component drift, the crystal oscillator frequency will slowly change over time, typically measured in ppm/year. High-quality TCXOs can maintain annual drift within ±0.1ppm to ±1ppm, equivalent to a cumulative deviation of no more than 10ppm over 10 years of operation.
Short-term stability: This characterizes frequency fluctuations on timescales from milliseconds to seconds, quantified by phase noise or Allan variance. In high-speed data transmission systems, excessive short-term fluctuations can cause signal eye closure. By optimizing the oscillator circuit design, TCXOs can control phase noise at a 1kHz frequency offset to below -110dBc/Hz.
4. Operating temperature range: The temperature range within which a crystal oscillator can maintain stable operation. Common operating temperatures include (-30°C to +85°C) and (-40°C to +85°C).
5. Operating voltage: Mainstream TCXOs use 1.8V, 2.5V, or 3.3V DC power supplies, which must match the system power bus.
6. Package size: The package size should be selected based on board space and layout requirements.
7. Output Waveform: Common waveforms include sine and square waves.
8. Phase Noise: A frequency-domain measure of short-term stability, expressed as the ratio of the power per 1 Hz bandwidth in the single-sideband spectrum to the carrier power.
When selecting a temperature-compensated crystal oscillator, consider the above parameters based on specific application requirements to ensure optimal performance and reliability.
