OCXO Solutions for Satellite Communication Timing Systems
As satellite internet, low Earth orbit (LEO) satellites, and high-throughput communication systems continue to evolve, the demand for precise timing and frequency synchronization is rapidly increasing.
From satellite ground stations and GNSS timing platforms to microwave transmission systems, modern communication equipment relies on highly stable reference clocks for accurate synchronization and frequency control.
In these systems, clock stability directly affects carrier accuracy, synchronization performance, and long-term communication reliability. Frequency drift or excessive phase noise may lead to higher bit error rates, PLL instability, and degraded signal quality.
This is why high-performance OCXOs (Oven Controlled Crystal Oscillators) have become essential components in satellite communication infrastructure.
Why Satellite Communication Requires High-Stability Clocks
Satellite communication systems are extremely sensitive to frequency accuracy. Core modules such as RF transceivers, PLLs, frequency synthesizers, baseband processors, and GNSS timing units all depend on a unified reference clock.
Compared with conventional communication equipment, satellite systems face additional challenges including:
• Long-distance frequency offset accumulation • Outdoor temperature fluctuations • Long-term continuous operation • Aging effects over time
As a result, engineers place greater emphasis on:
• Temperature stability • Phase noise performance • Aging rate • Short-term stability • Wide operating temperature capability
These parameters directly impact synchronization accuracy and overall communication stability.
To meet the demand for reliable reference timing solutions, YXC offers the YOV2020DP OCXO series.
The series supports both 10MHz and 100MHz frequencies with fast delivery options. It also provides 5V and 12V supply choices, along with square wave and sine wave outputs for flexible system integration.
Key performance advantages include:
• Frequency stability up to ±3ppb • Daily aging rate within ±0.5ppb • Phase noise as low as -160dBc/Hz at 1kHz offset
These features help reduce frequency drift caused by temperature variation and long-term operation while improving PLL stability and signal demodulation performance.
For communication equipment manufacturers, the YOV2020DP series provides an excellent balance between stability, cost efficiency, and delivery speed.
YOV5050DP: High-Precision Frequency Reference Solution
For high-end timing and synchronization applications, YXC also provides the YOV5050DP OCXO series.
This solution is ideal for:
• Satellite ground stations • GNSS timing platforms • Precision frequency reference modules • Test and measurement equipment
In 10MHz applications, the YOV5050DP series can achieve frequency stability as high as ±0.5ppb, with selected solutions supporting ultra-high precision levels down to ±0.01ppb.

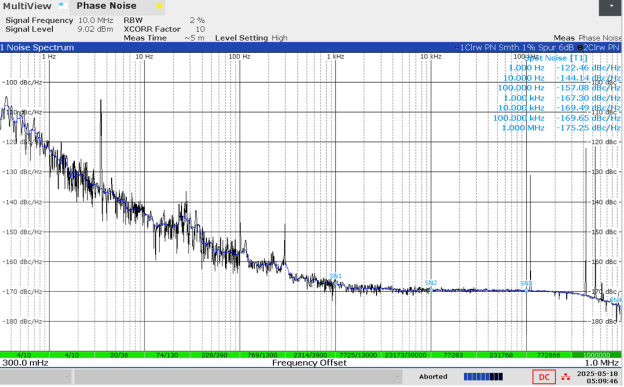

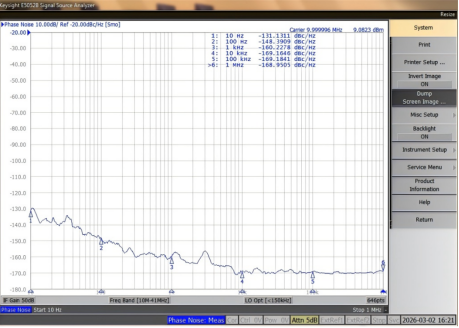

Its phase noise performance can reach as low as -150dBc/Hz at 10Hz offset, delivering cleaner local oscillator signals, lower link jitter, -term synchronization reliability.
Conclusion
In satellite communication systems, OCXOs are more than just precision clock devices — they are the foundation of reliable timing and frequency synchronization.
With low phase noise, exceptional frequency stability, and long-term reliability, YXC OCXO solutions provide dependable timing support for satellite communication, GNSS synchronization, and precision timing systems worldwide.
