High-Performance Clock Solution for Smart Displays
As display technology advances toward 4K/8K resolution and high refresh rates such as 120Hz and 144Hz, timing accuracy has become increasingly critical. Applications ranging from gaming monitors and industrial HMIs to medical imaging systems require stable clock signals to ensure smooth image transmission and synchronization.
Modern display interfaces such as HDMI, DisplayPort (DP), and LVDS operate at ever-increasing data rates. Even small amounts of clock jitter can negatively impact signal integrity, resulting in display artifacts, synchronization loss, or EMI compliance issues.
Clocking Challenges in High-Speed Display Systems
Display systems typically integrate SoCs, FPGAs, display drivers, and interface ICs, creating complex timing architectures. Key challenges include:
• Generating non-standard frequencies required by different display resolutions and refresh rates. • Maintaining ultra-low jitter for high-speed serial interfaces. • Reducing PCB space and power consumption in compact display designs. • Meeting stringent EMC and EMI requirements. YXC SYKG1042E/Q5 Programmable Clock Generator
The SYKG1042E and SYKG1042Q5 programmable clock generators are designed to address these challenges in high-performance display applications.
Flexible Frequency Synthesis
Supporting output frequencies from 1 MHz to 333.33 MHz, the SYKG1042E/Q5 can generate customized clock frequencies through I²C configuration or pre-programmed OTP settings, eliminating the need for costly custom crystal solutions.
Ultra-Low Jitter Performance

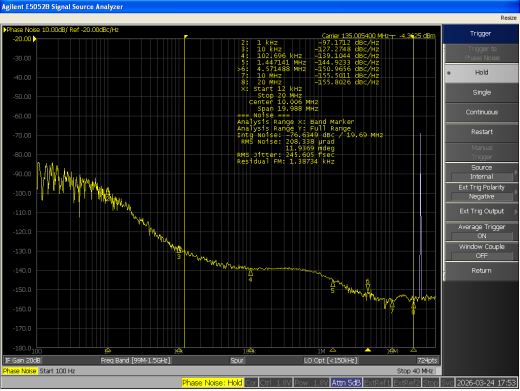

With typical RMS phase jitter as low as 245 fs (12 kHz–20 MHz), the device delivers the signal integrity required for HDMI, DisplayPort, PCIe, and other high-speed interfaces, ensuring stable image transmission even in high-refresh-rate displays.
High Integration, Low Power
A single compact 4.0 mm × 4.0 mm device provides four differential outputs and two LVCMOS outputs while consuming less than 150 mW at 1.8 V operation. This reduces component count, PCB area, and thermal design complexity.
Spread-Spectrum Clocking (SSC)
Built-in spread-spectrum technology helps reduce EMI peak emissions by distributing clock energy across a wider frequency range, improving the likelihood of passing EMC compliance testing.
Ideal for Advanced Display Applications
Combining flexible frequency generation, ultra-low jitter performance, high integration, and EMI reduction capabilities, the YXC SYKG1042E/Q5 series provides a reliable clocking solution for gaming monitors, industrial displays, medical imaging equipment, and other high-speed smart display systems.
